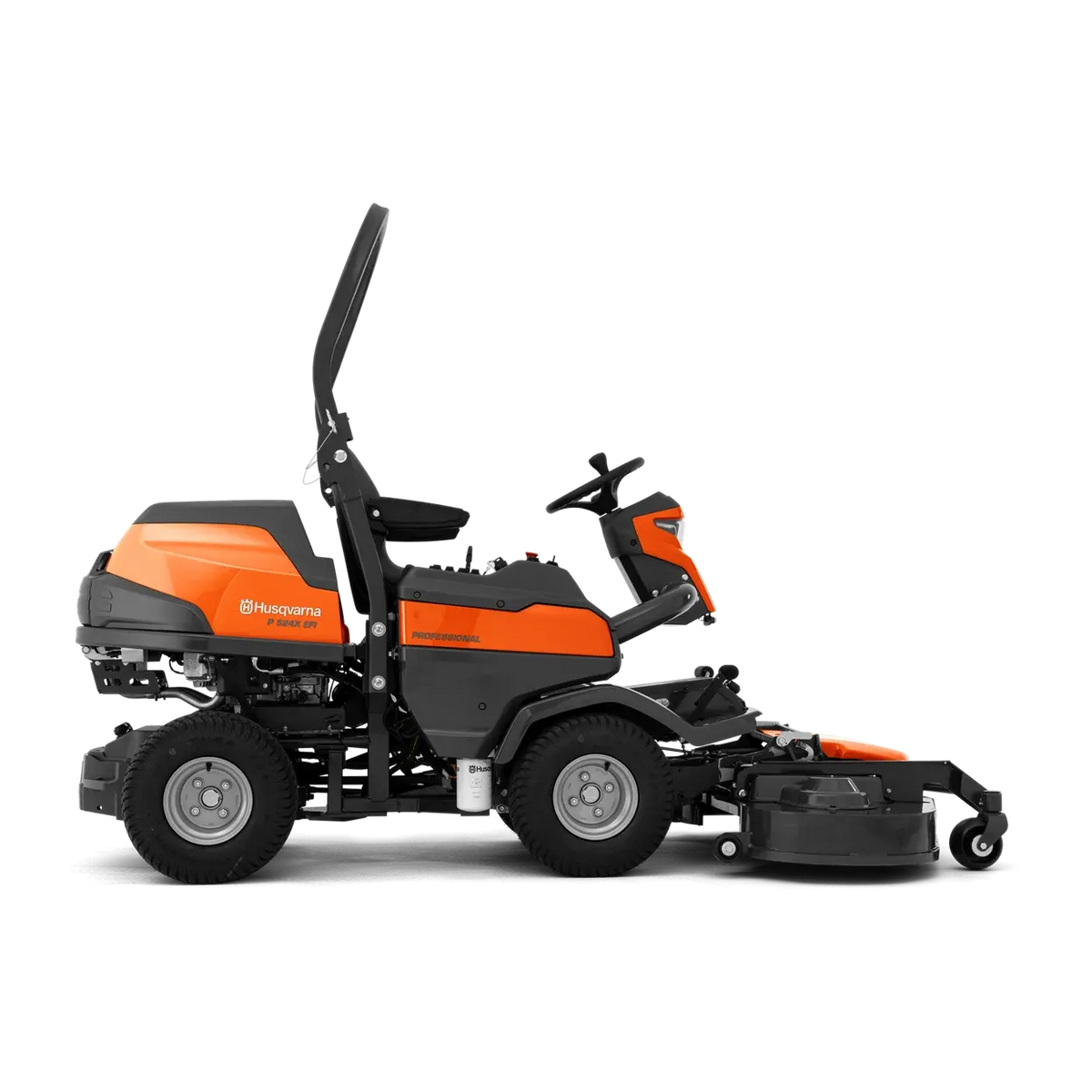

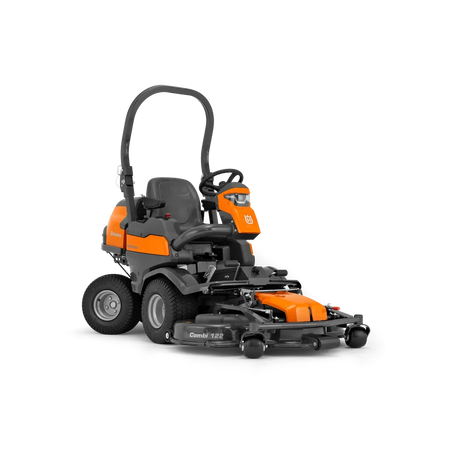

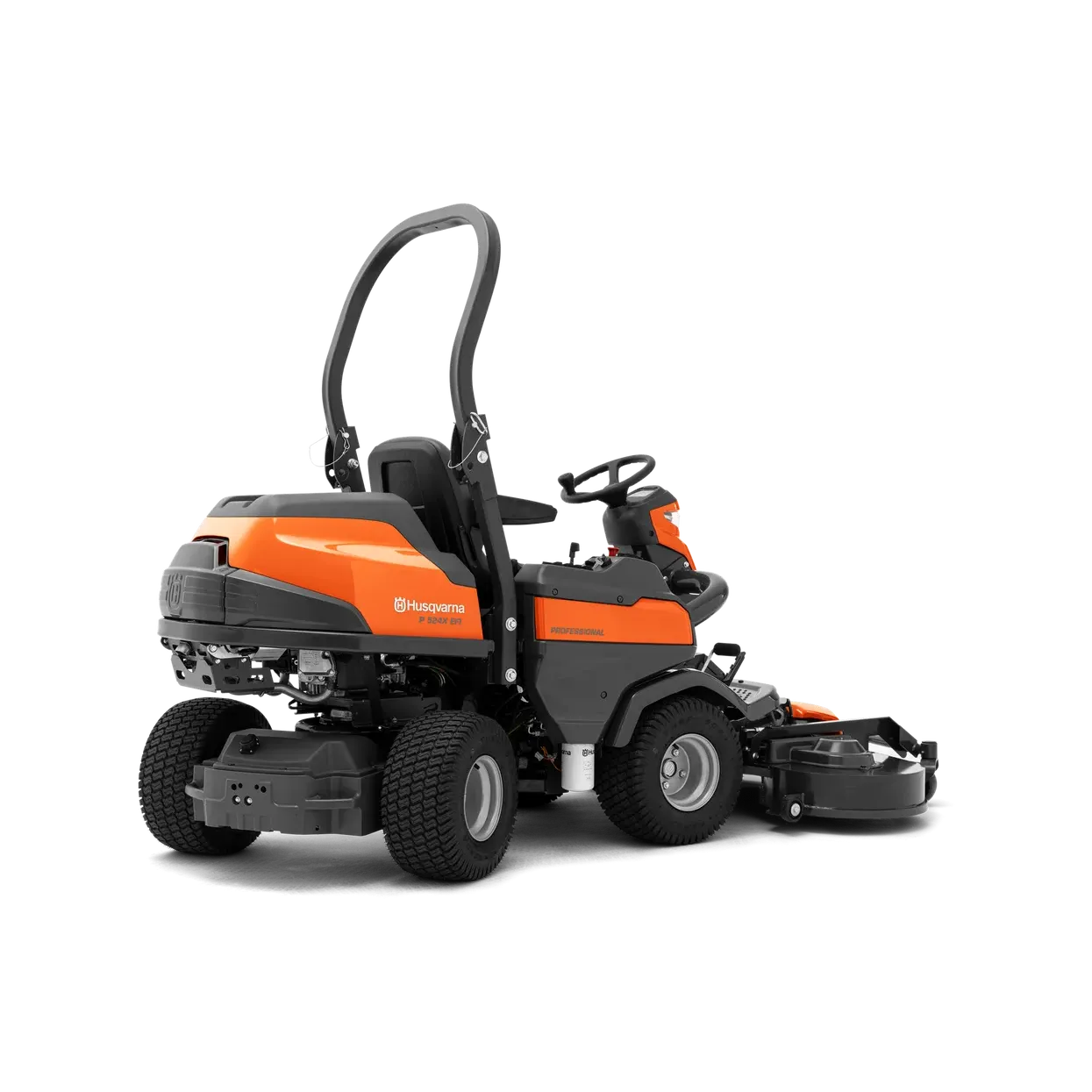

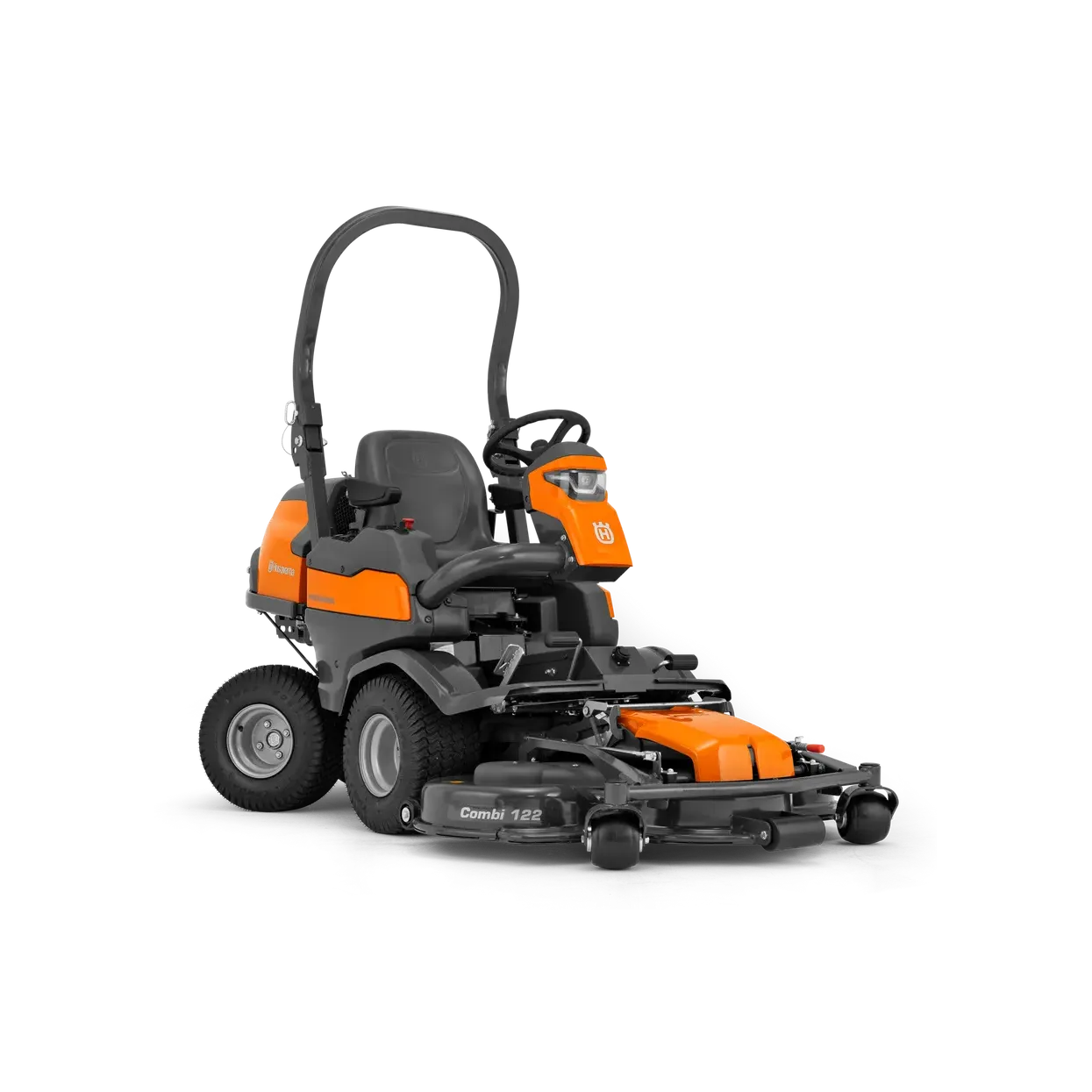

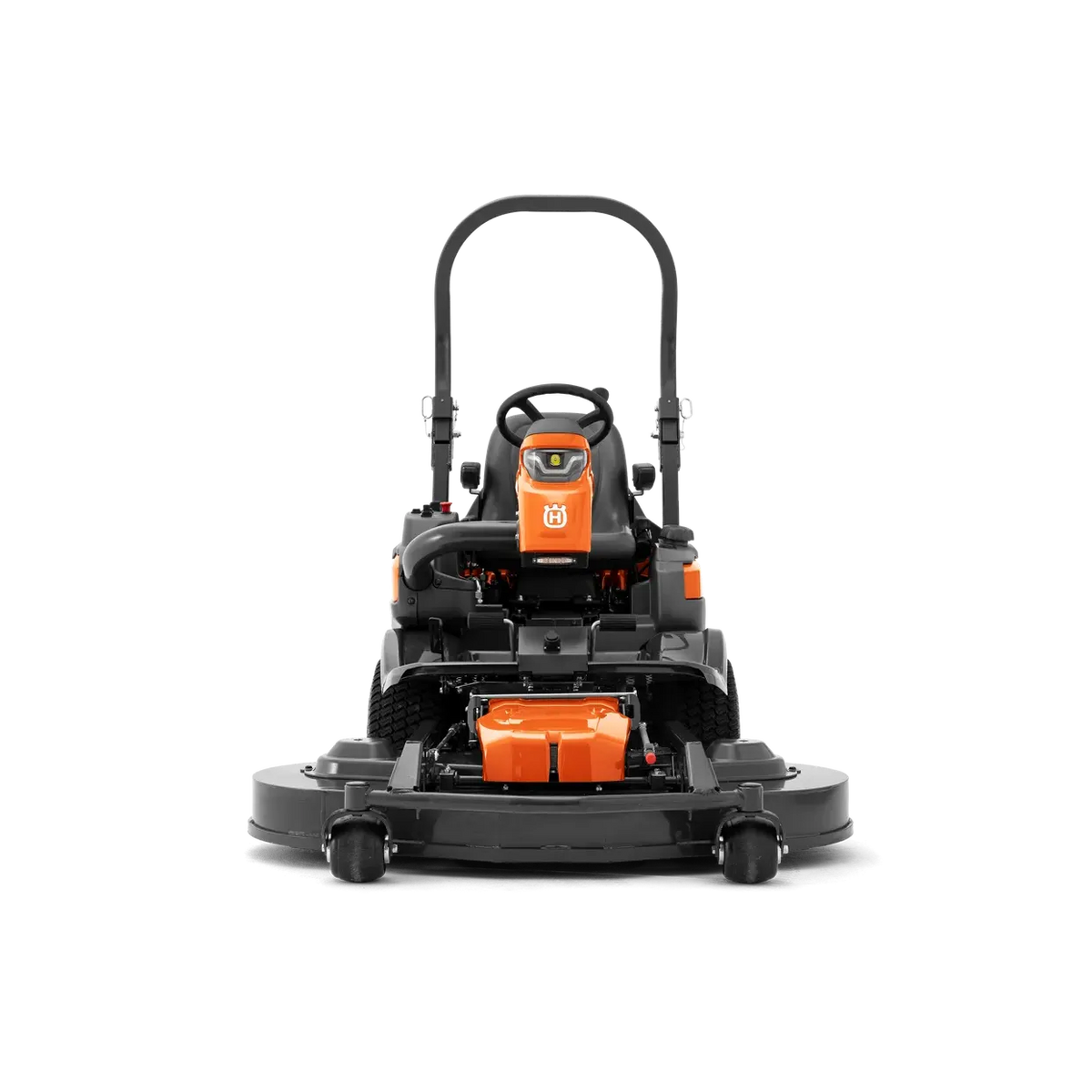

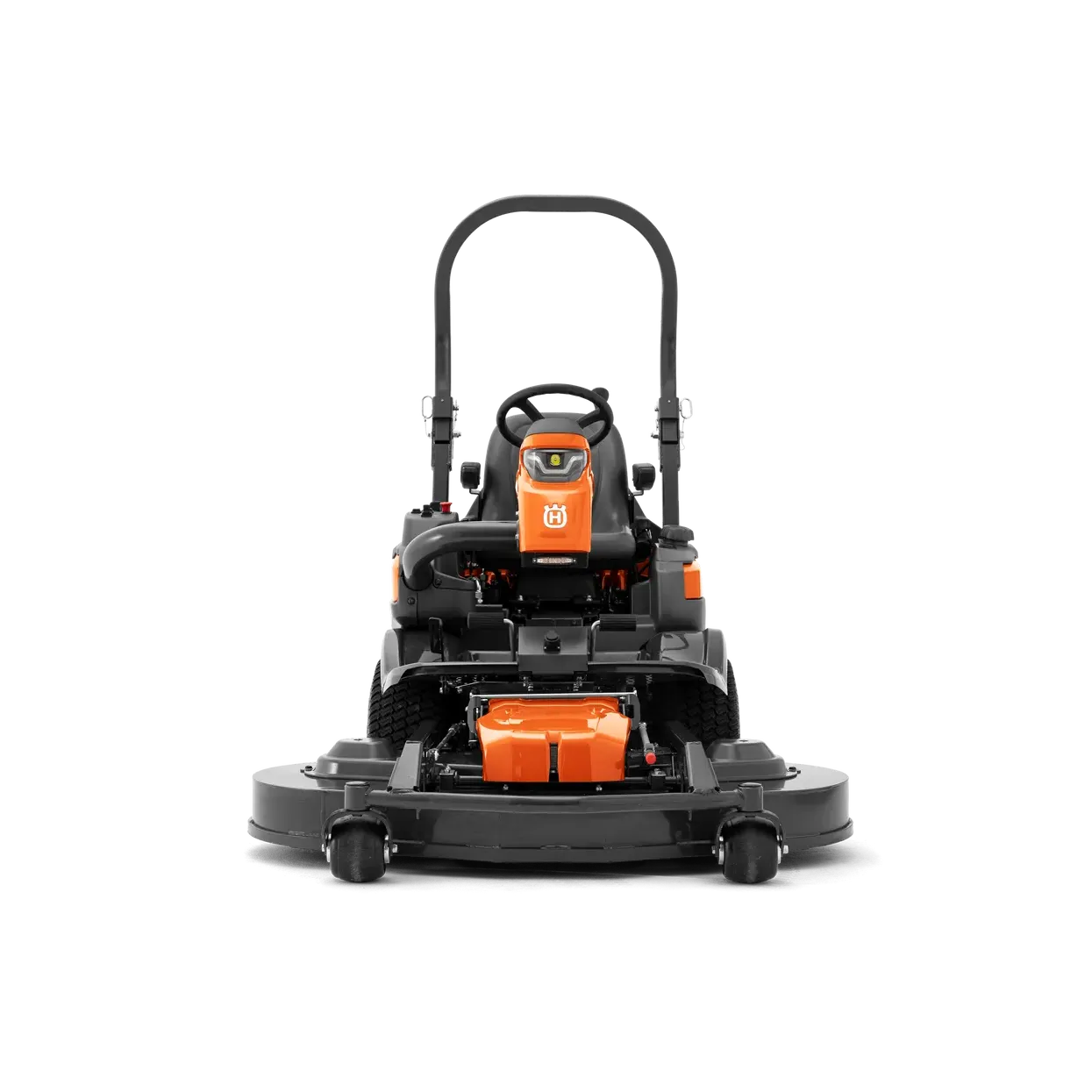

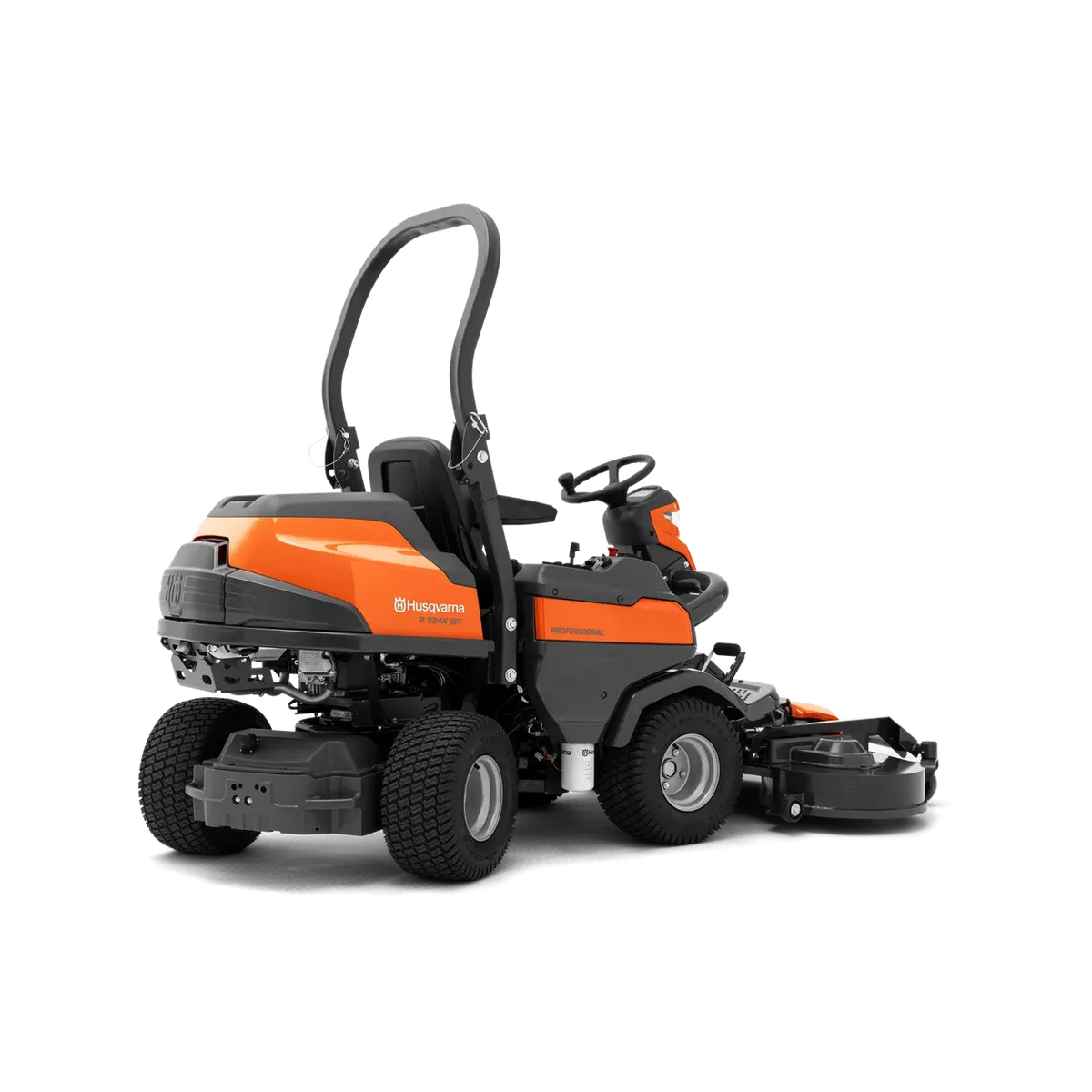

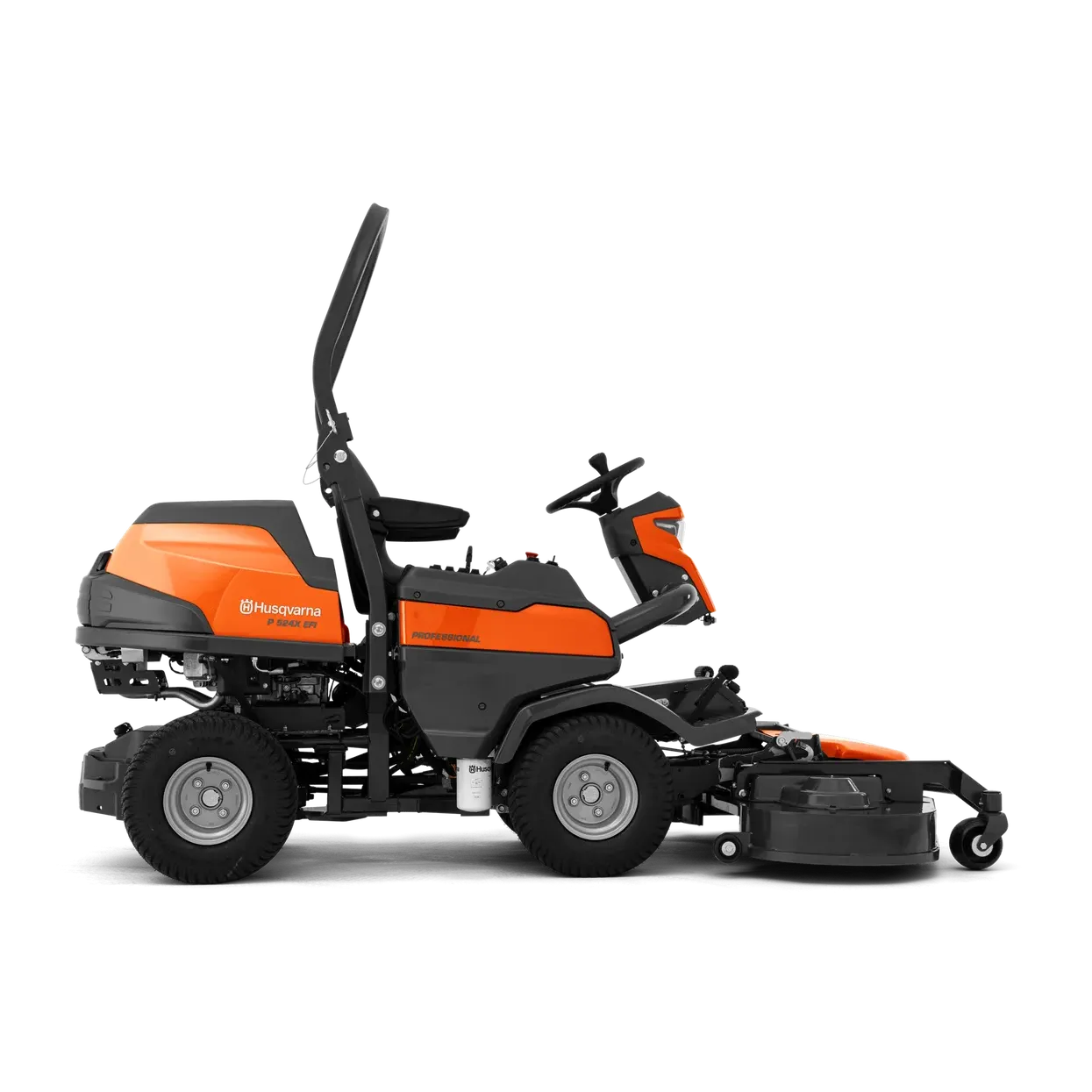

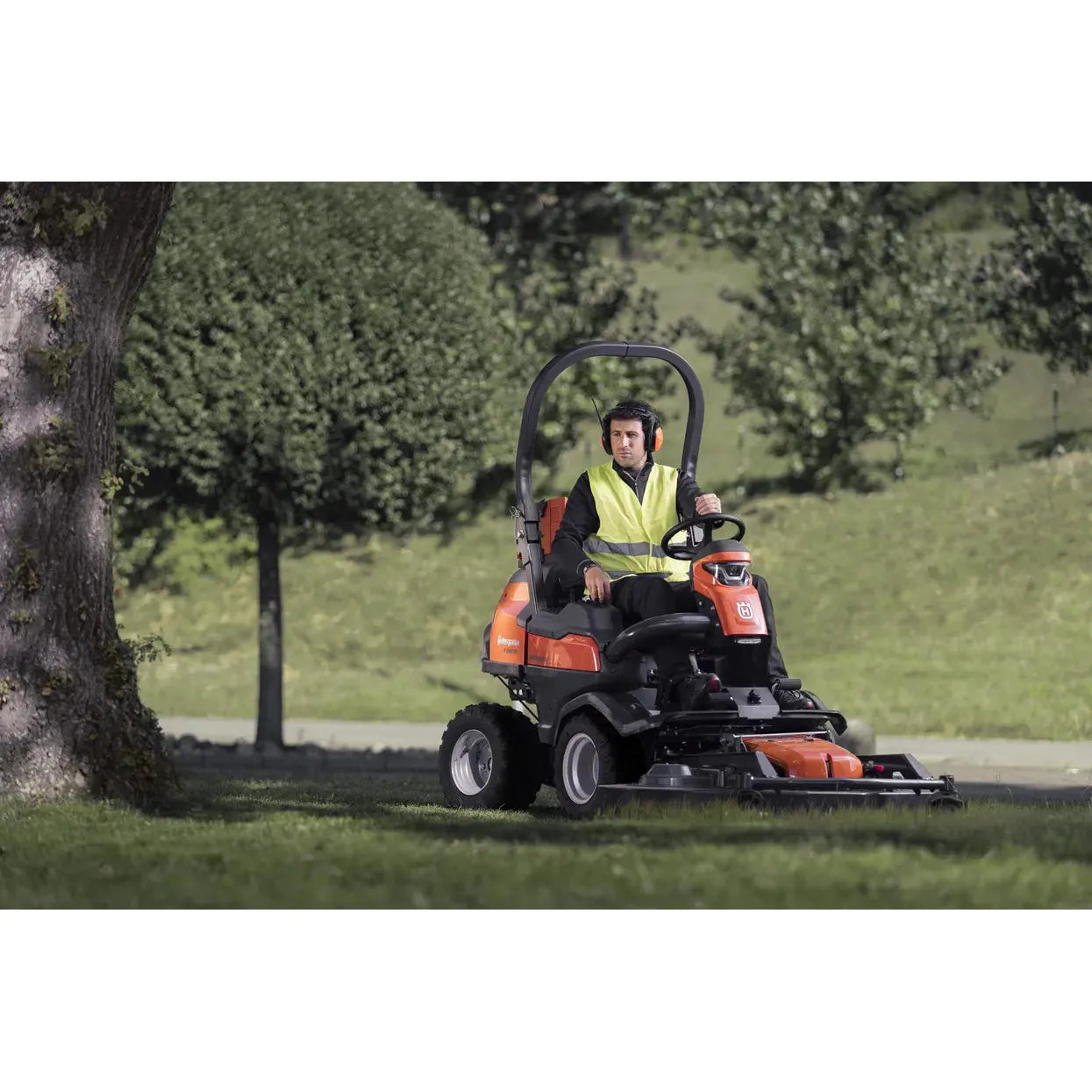

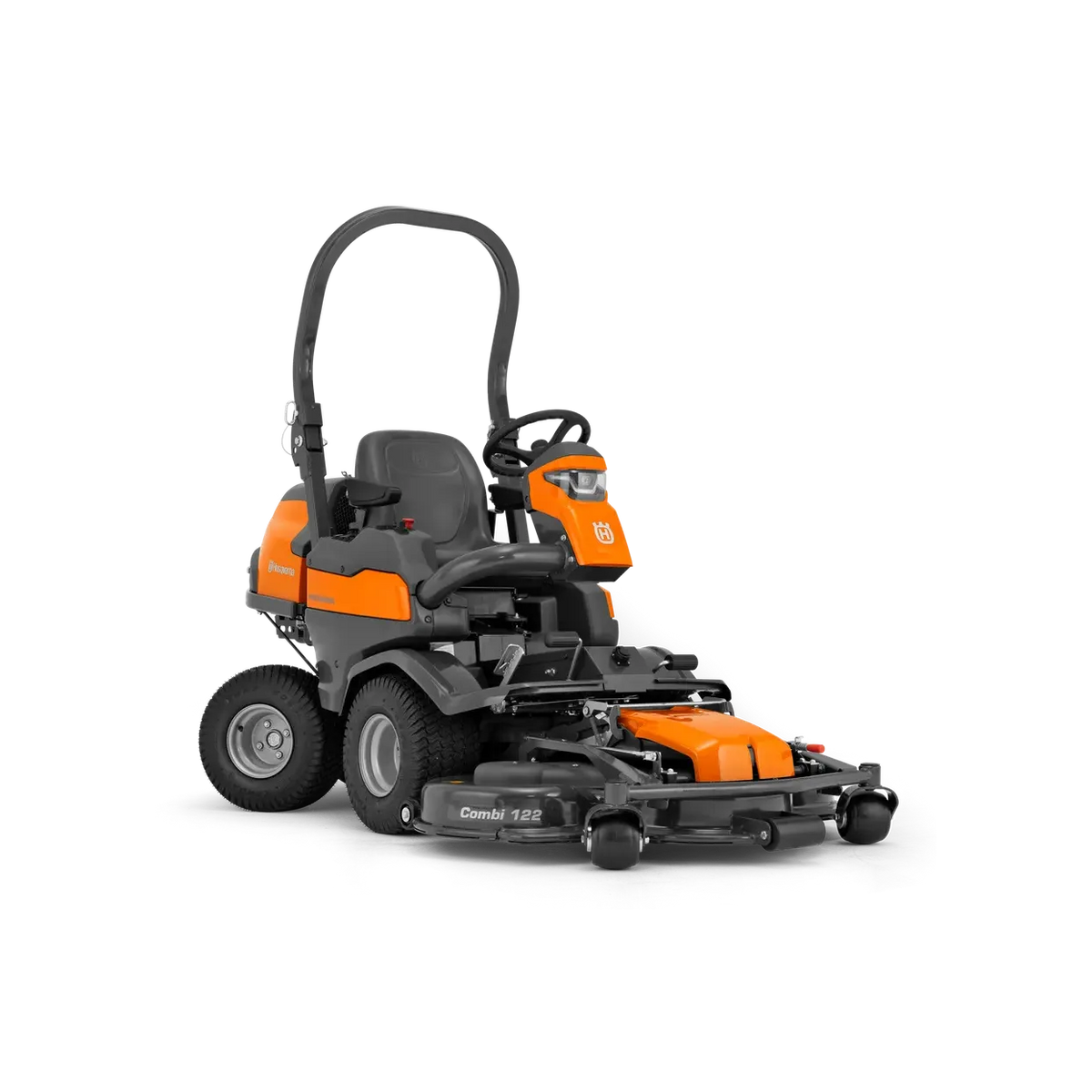

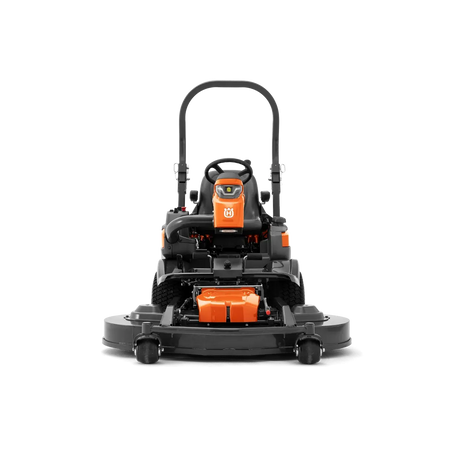

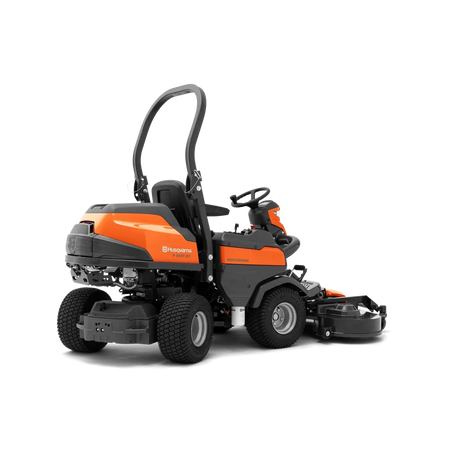

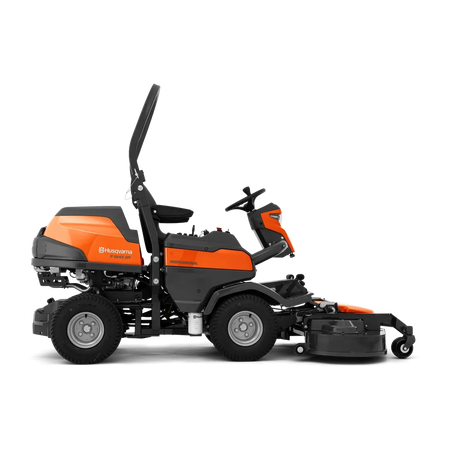

Husqvarna P524X Ride-On Front Mower - Front-mounted petrol ride-on lawn mower, built for commercial use.

Patented articulated steering

Our patented articulated steering increases driving pleasure by improving manoeuvrability.

All-Wheel Drive (AWD)

The machine’s low centre of gravity in combination with the high-performing AWD-system gives excellent slope and hillside stability.

Durable ladder frame

Heavy-duty steel ladder frame with reinforcements combined with an open design for excellent serviceability.

Hydraulic power steering

Heavy-duty hydraulic-cylinder power steering makes driving less strenuous.

OHV-engine by Kawasaki

Equipped with a Kawasaki V-twin engine with overhead 90° valves, high performance lubrication system, cast iron cylinder liners and dual stage canister air filter. Combines exceptional power and torque with fuel efficiency and reduced emissions.

Versatile usage

A wide range of cutting decks and attachments will make your front mower exceptionally versatile, all year round.

Quick coupling

Unique quick coupling allows attachments to be changed quickly and efficently without tools.

Trimming ability

The front-mounted cutting deck gives an excellent overview of the working area, enabling precise, close-up trimming.

Mowing accessibility

The low profile front-mounted cutting deck gives unbeatable accessibility under fences, bushes, park benches etc.

Ergonomic operation

Ergonomic operator’s interface for a comfortable ride during long working hours.

Easy-access controls

Operator environment designed around the user. The control panel is raised with all controls ergonomically positioned for easy access. The most frequently used controls are positioned at the front while controls used less often are positioned further back.

16 inch wheels

16 inch wheels both front and back for optimal riding comfort and accessibility.

Dual LED lights

Dual LED lights for enlarged lighted area and safer operation in darker conditions. Improved visibility, both near and remote.

Electric engaged parking brake

Parking brake with electric engagement enables safe handling in seated mode by operator as well as remote mode using the FlexiDrive remote control unit (P 524XR EFI).

Roll Over Protective Structure (ROPS)

The vehicle is equipped with a Roll Over Protective Structure (ROPS) and seat belts certified to five international standards including OSHA and SAE requirements. The ROPS ensures a safe ride for the operator.

Power outlet

Electrical front- and rear outlets for power and control of attachments. Simple installation and only needs to be installed once, fits all attachments requiring electric control. Kit includes power outlet, electric wiring and switches for the control panel (available as separate accessory).

Commercial grade transmission

High-specified variable piston pumps with separate gear boxes for front and rear axle.

Cast iron rear wagon

For improved durability the complete rear wagon is one piece of ductile cast iron.

Improved robustness

The Husqvarna X series facelift features several improvements. These updates include a more reliable, upgraded PTO belt system, a hardwearing foot plate made of corrugated steel sheet and a more compliant and robust pedal system. For greater rigidity and reliability, the position for the cutting height adjustment has also been moved to the cutting deck.

Greasable mandrels

For easy maintenance and longer lifetime.

Service position

Service postion on the cutting deck facilitates cleaning and service.

Ready for Combi deck

Prepared for the high-performing and unique Combi deck. Designed to deliver a cutting result in top-class, offering two cutting methods in one deck; mulching or rear discharge (mulch plug removed). Stamped from a single piece of steel plate in a flow-optimized design to deliver best in class mulch result.

P 524X RIDER P 524X (2023-)

Art no: 970 60 15‑01

Engine

• Power/fuel type: Petrol
• Net power at preset rpm Energy: 113.9 kW
• Net power at preset rpm: 3,000 rpm
• Engine brand: Kawasaki
• Motor/engine manufacturer: Kawasaki
• Engine name: FX Series V-Twin
• Cylinder displacement: 726 cm³
• Cylinders: 2
• Engine cooling: Air
• Engine lubrication type: Full pressure with oil filter
• Oil filter: Yes

Emission

• Exhaust emissions (CO₂ EU V): 2792 g/kWh

Battery

• Battery capacity: 24 Ah
• Battery type: Lead-Acid
• Battery pack weight: 7.2 kg
• Battery manufacturer: Global

Cutting deck

• Uncut circle: 50 cm
• Cutting width, min: 112 cm
• Cutting width, max: 122 cm
• Cutting height min: 25 mm
• Cutting height max: 75 mm
• Blade engagement: Electric clutch

Dimensions

• Tyre dimensions, front: 18x8,5-8
• Tyre dimensions, rear: 18x8,5-8
• Wheelbase: 100 cm
• Ground clearance: 130 mm
• Base machine, length: 206 cm
• Base machine, width: 98 cm
• Base machine, height: 122 cm
• Gross weight towed: 3200 kg
• Weight (excl. cutting equipment): 433 kg

Drive system

• PTO (Power Take Off): Belt-driven
• Transmission type: Hydrostatic
• Transmission manufacturer, rear: Kanzaki
• Drive method: Dual pedal-operation
• Speed forward max: 13 km/h
• Speed reverse max: 9 km/h
• Transmission manufacturer, front: Kanzaki
• Transmission model, front: KTM 23LB
• Transmission model, rear: KTM 23SB

Equipment

• Seat suspension: Yes
• Seat type: Professional
• Hour meter type: Digital
• Seat material: Vinyl
• Seat back height: High
• Foldable seat: Yes
• Steering wheel type: Professional
• Parking brake, type: Disc

Vibration

• Vibration level steering wheel: 2.5 m/s²
• Vibration level seat: 0.5 m/s²

Sound and noise

• Sound pressure level at operators ear: 90 dB(A)
• Sound power level, guaranteed (LWA): 105 dB(A)
• Sound power level, measured: 104 dB(A)
