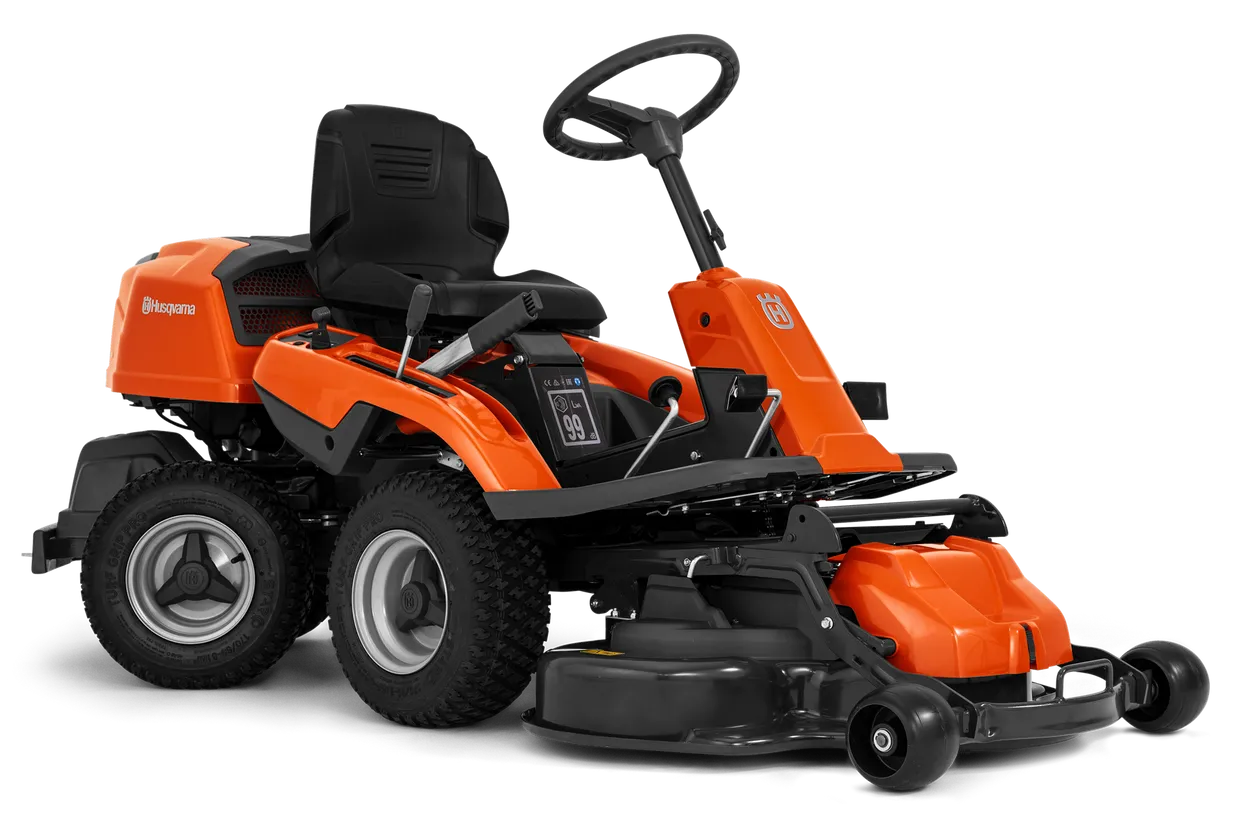

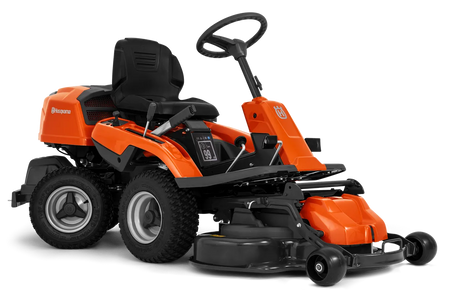

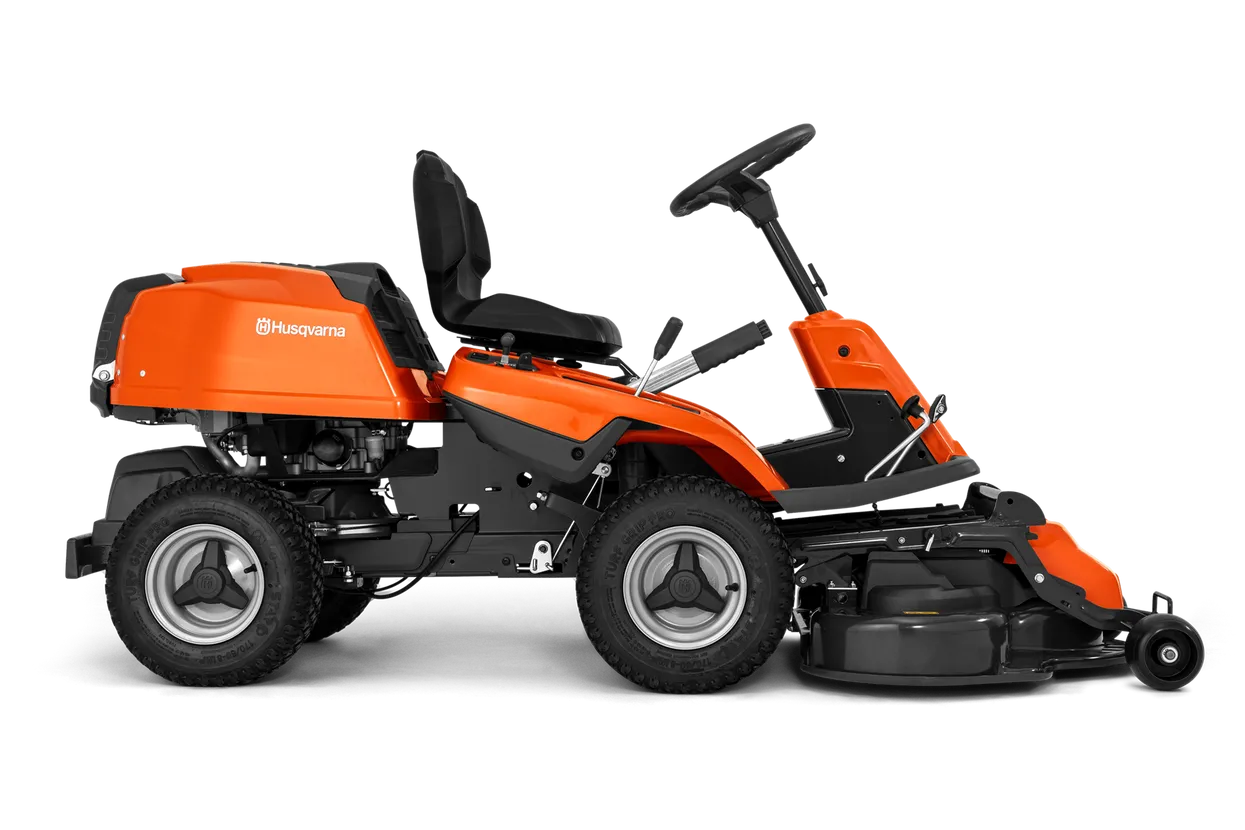

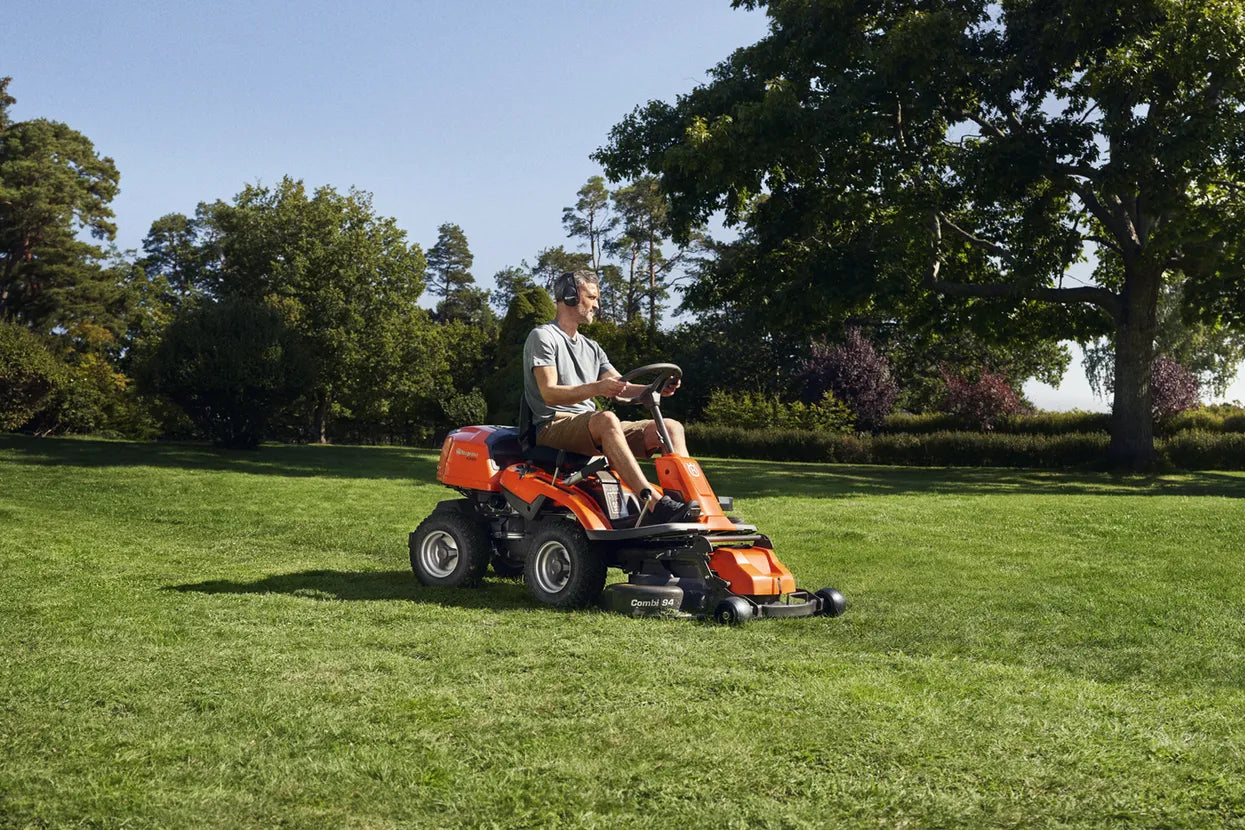

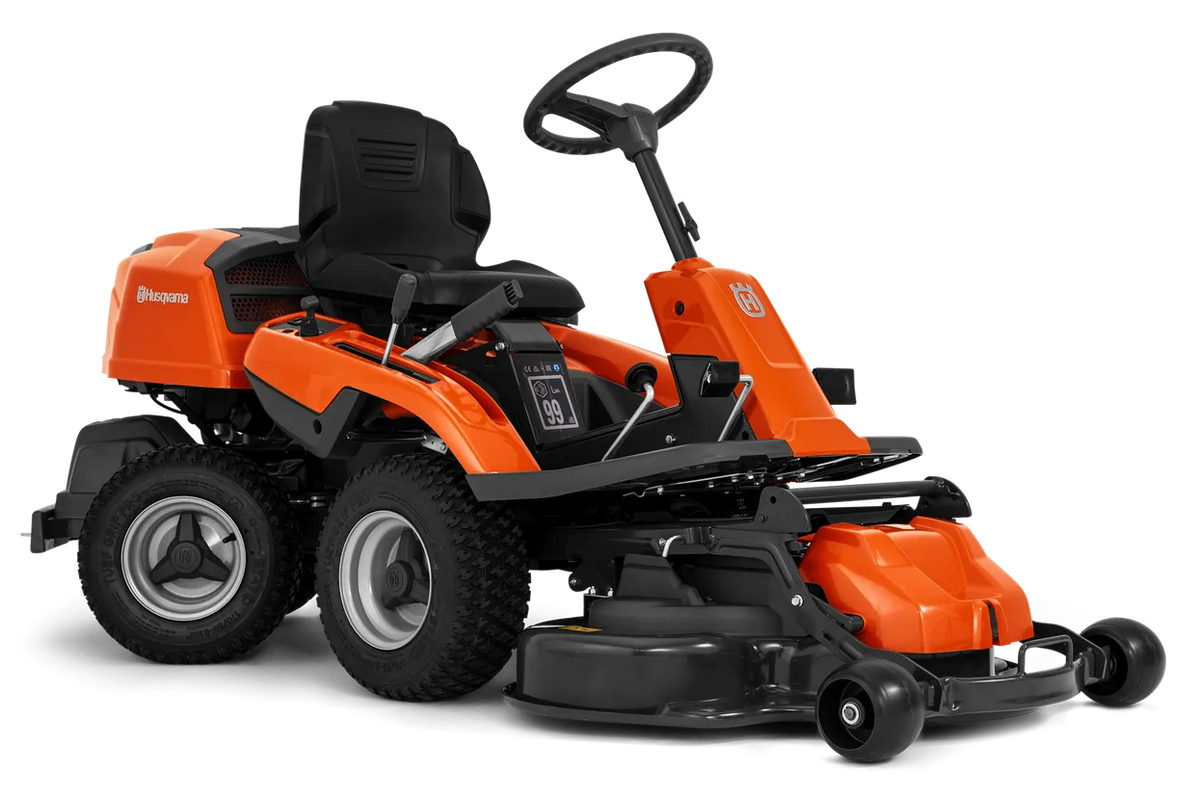

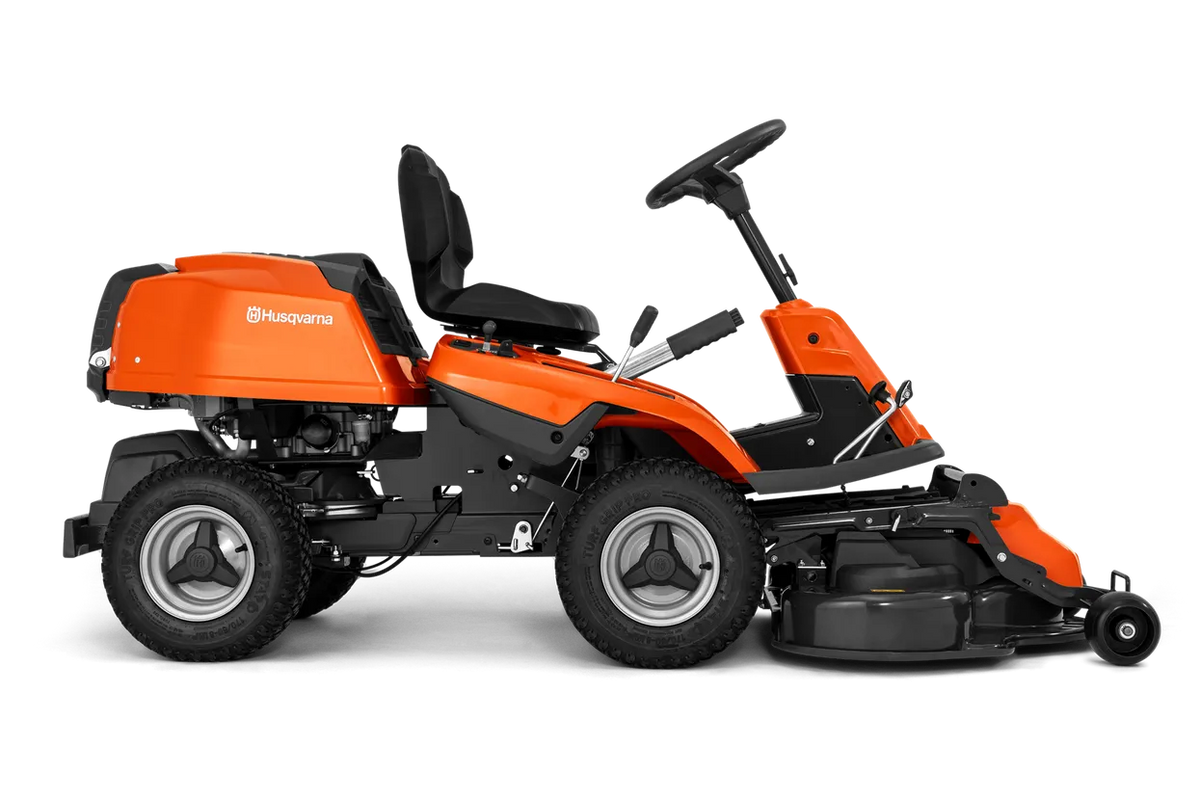

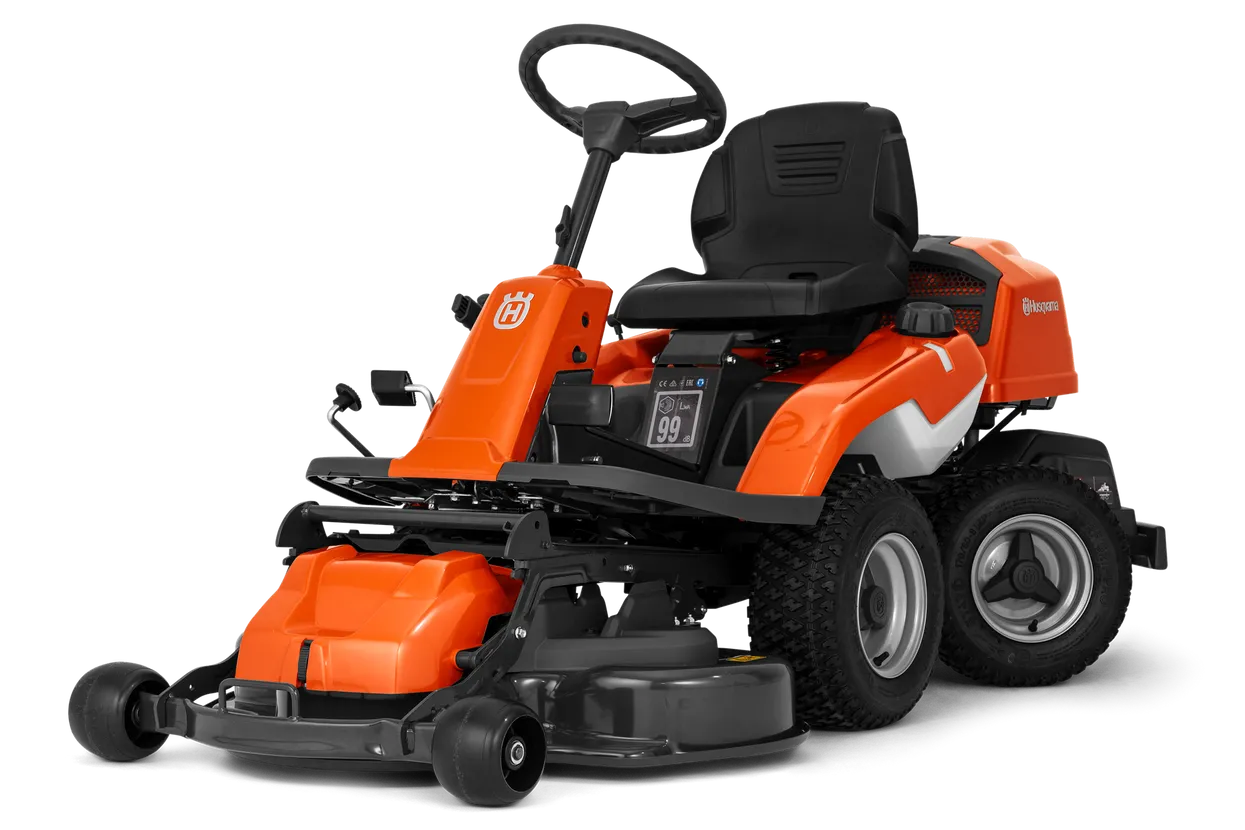

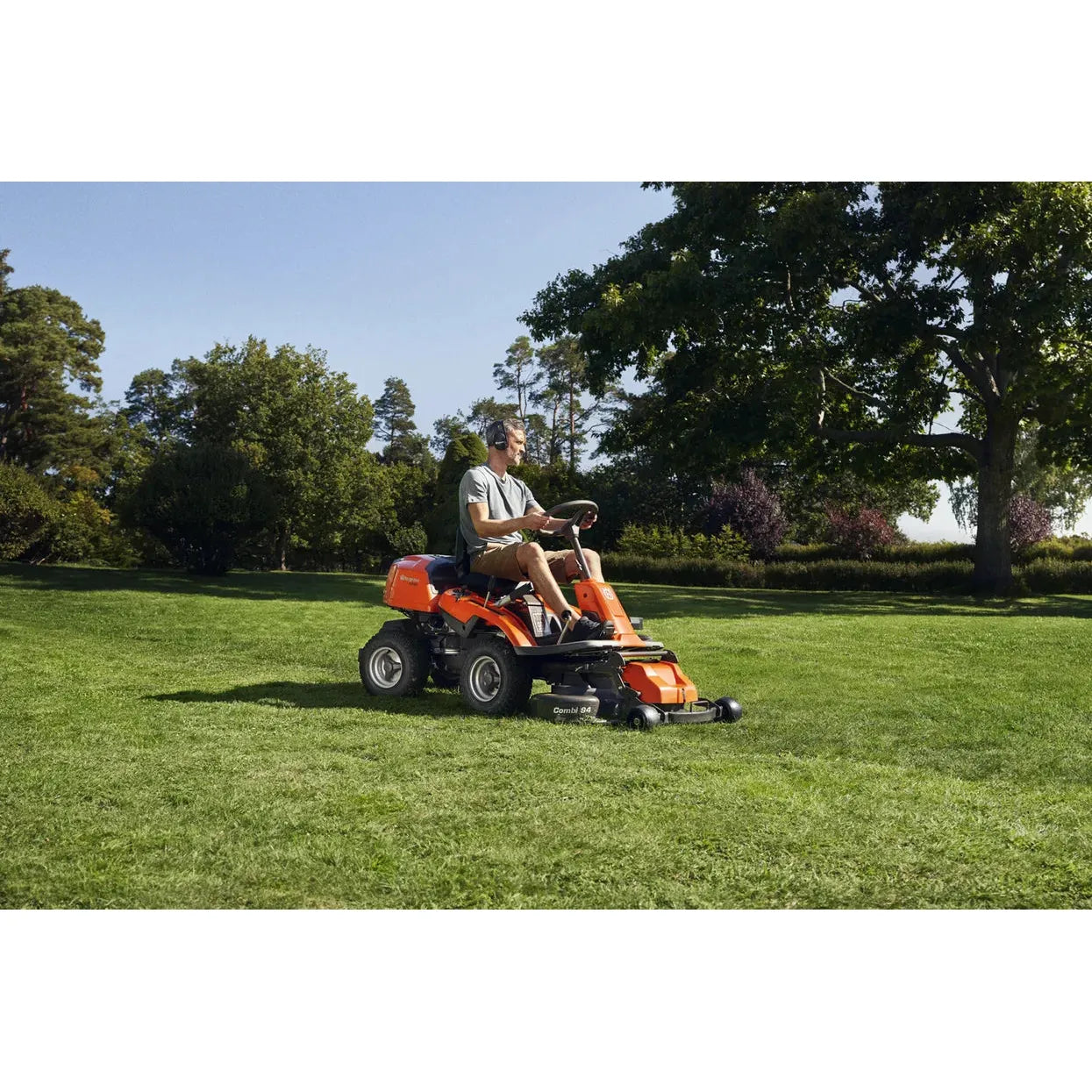

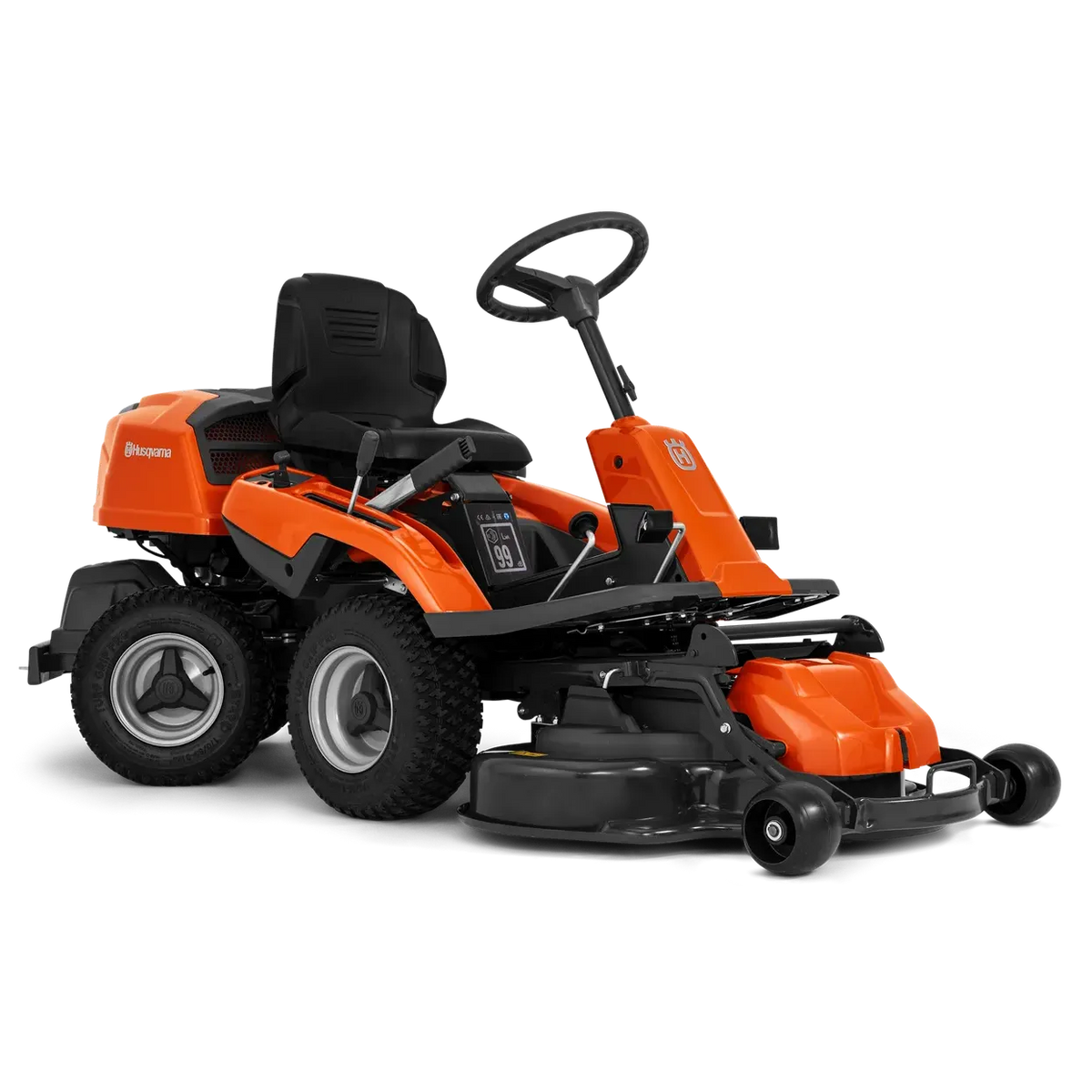

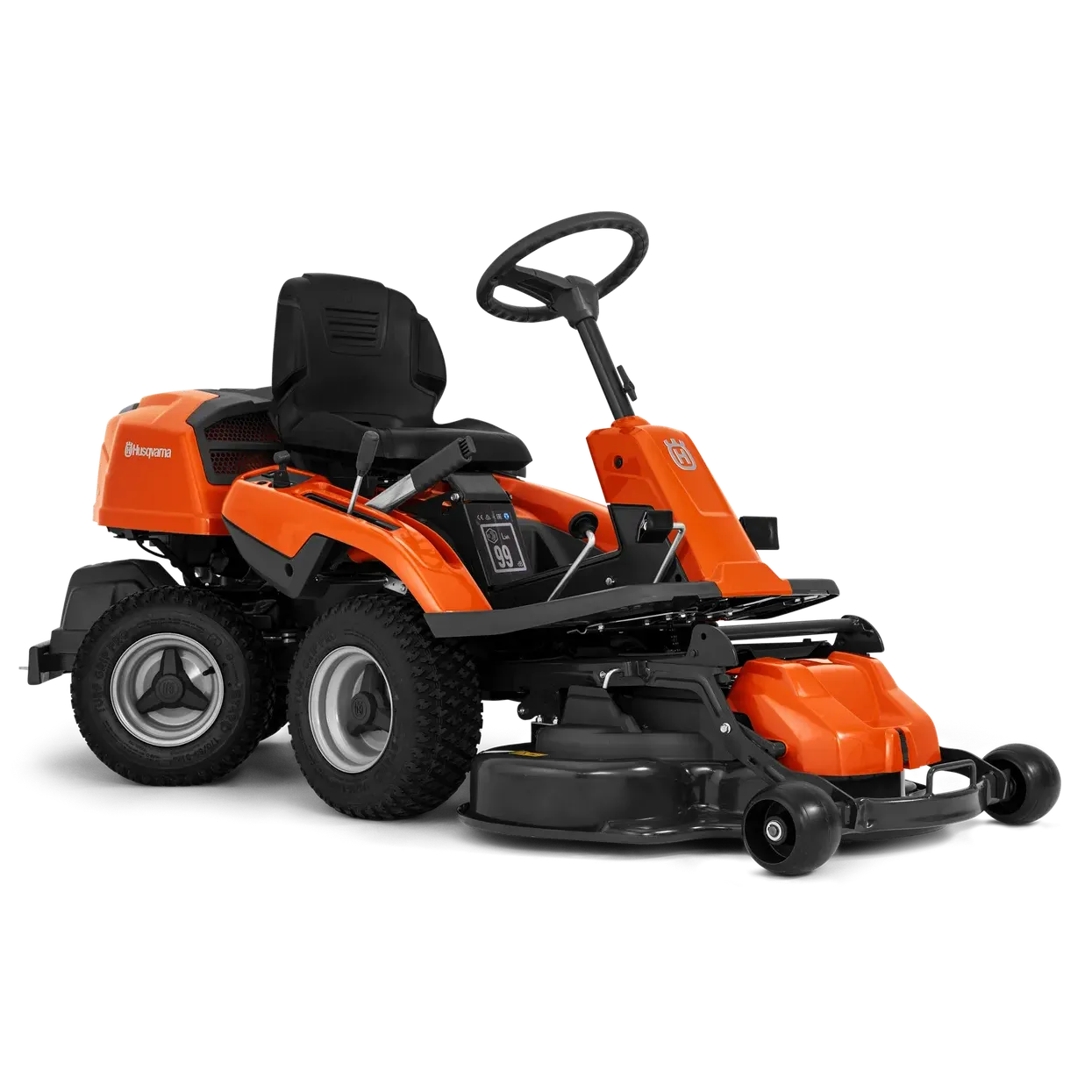

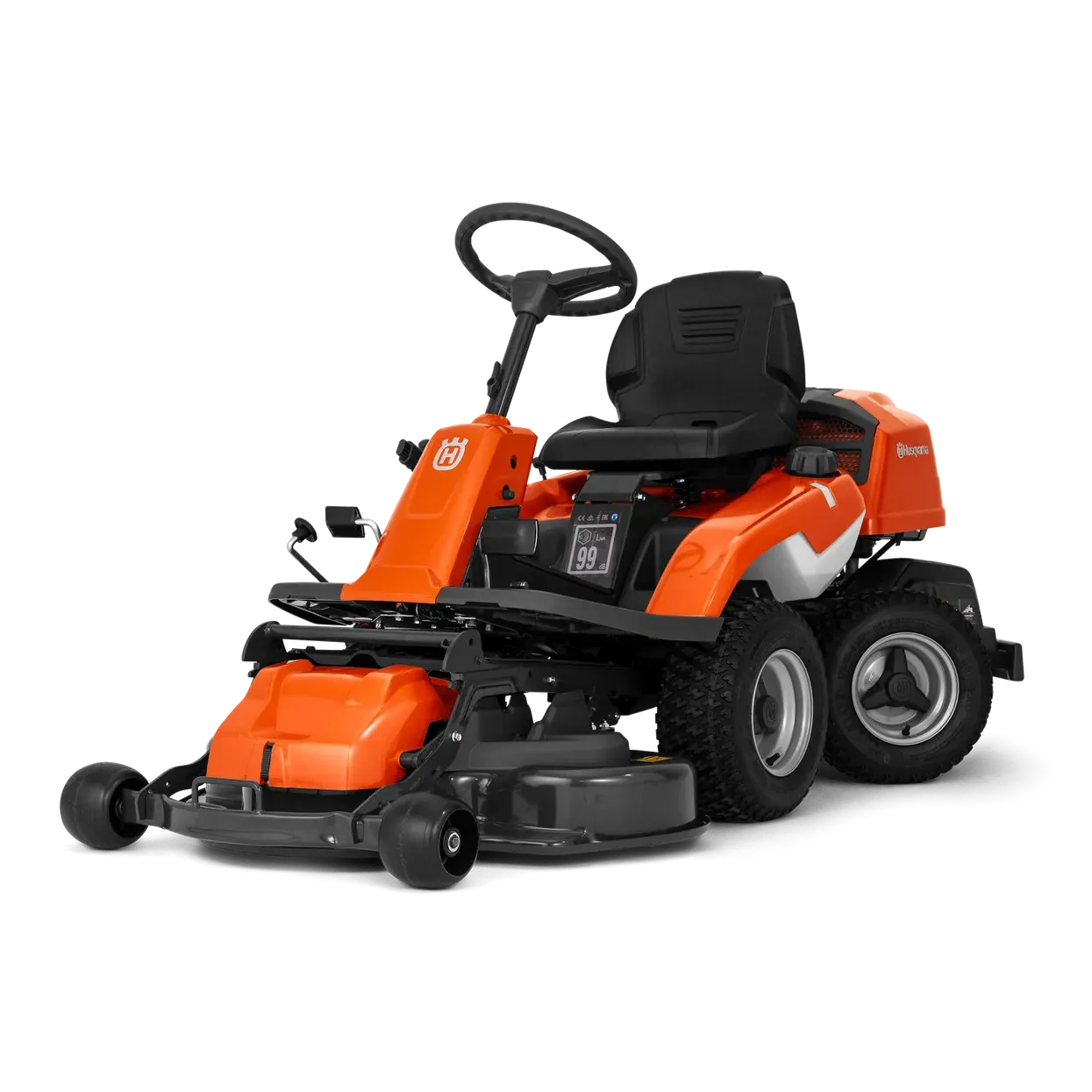

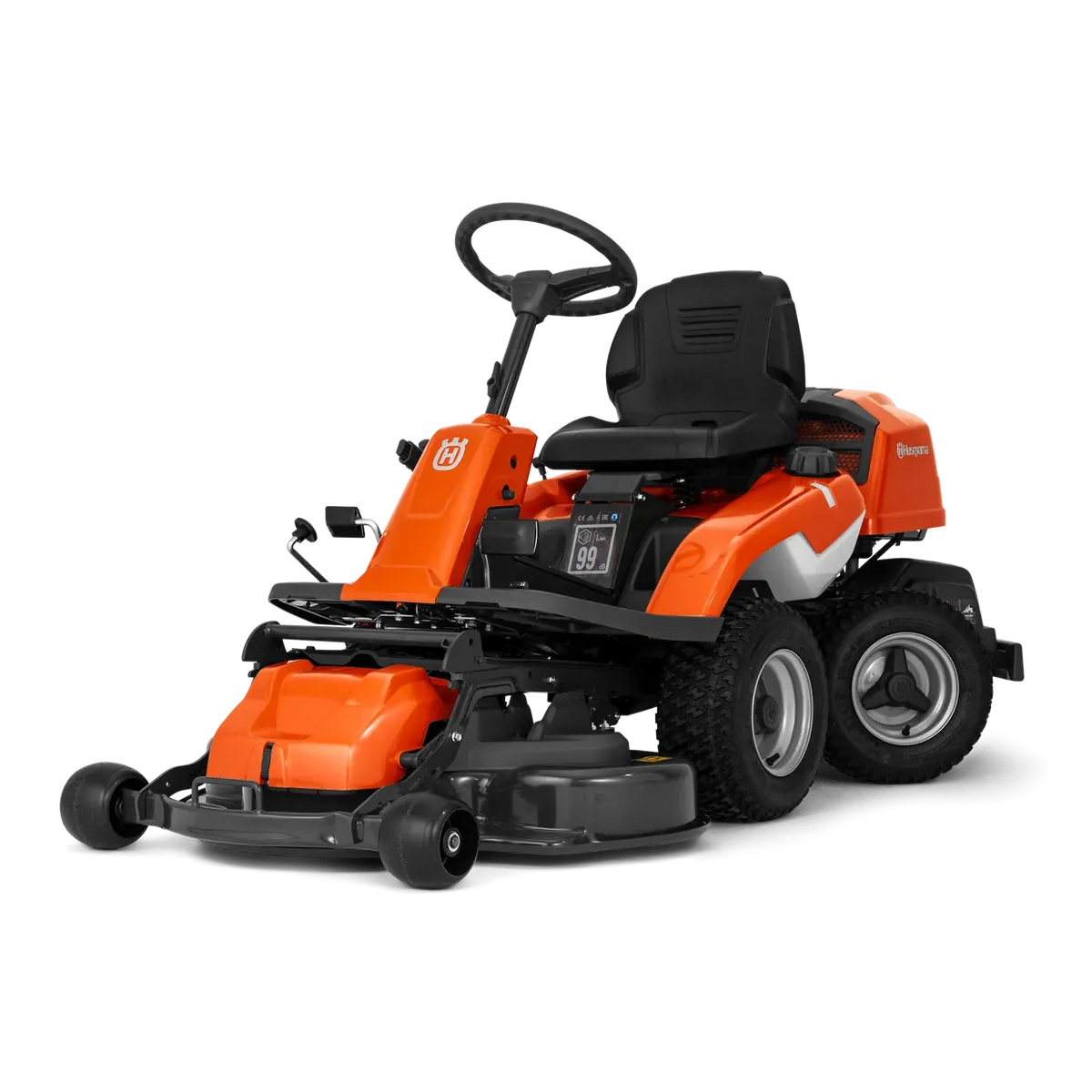

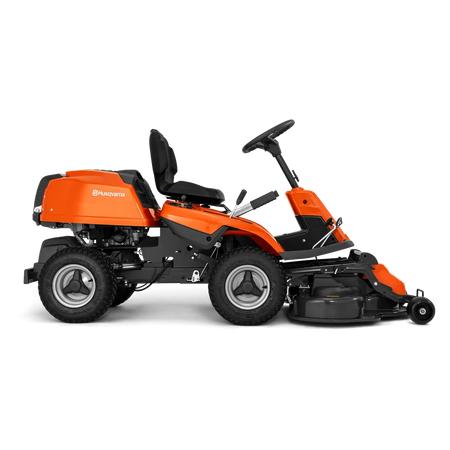

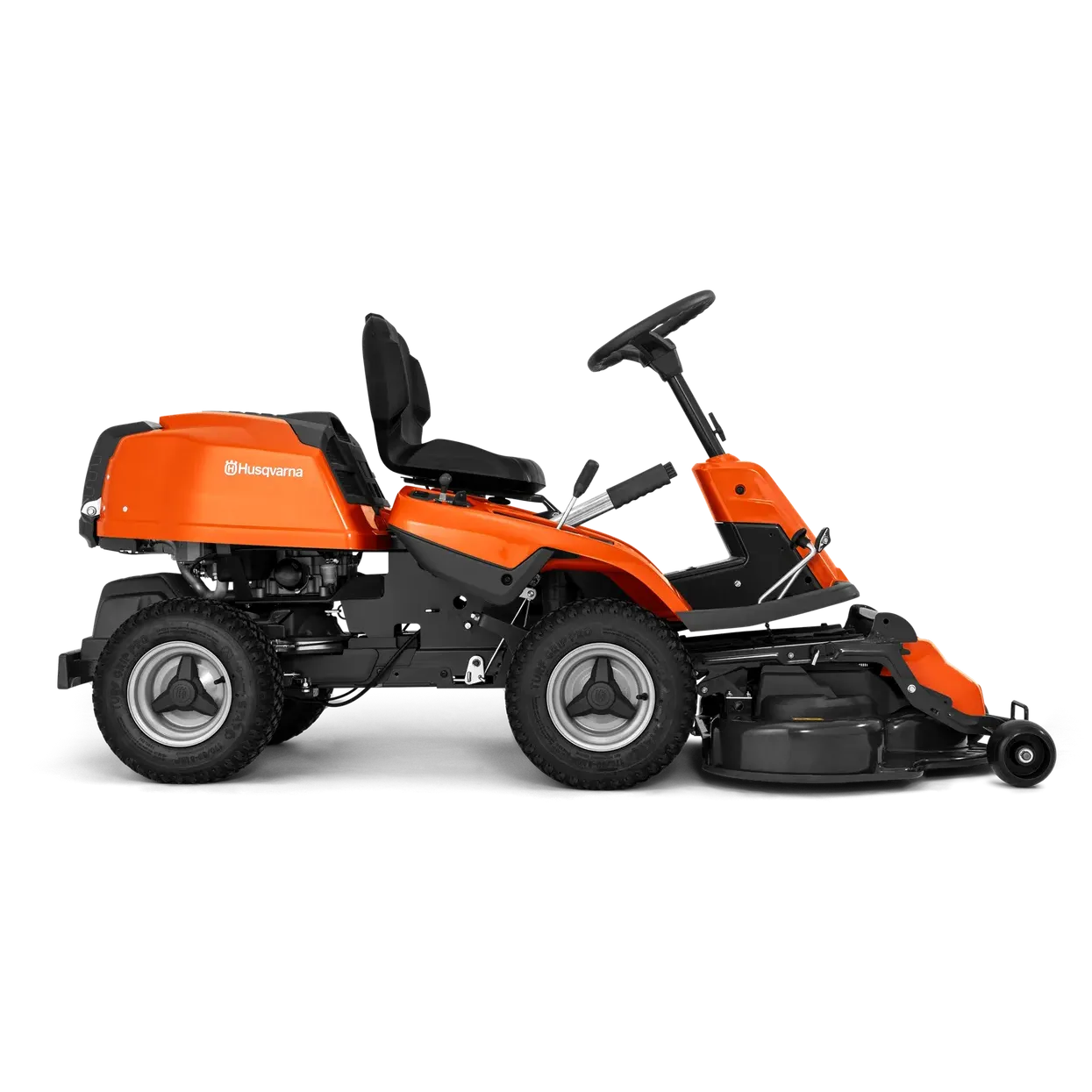

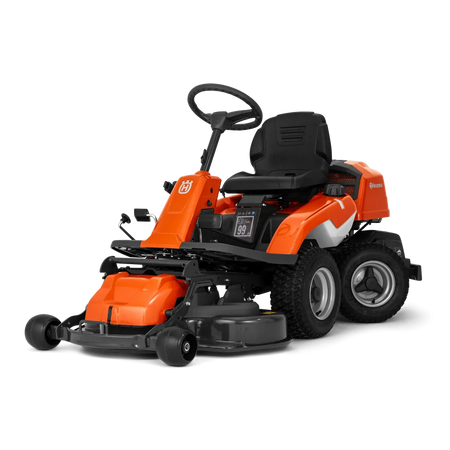

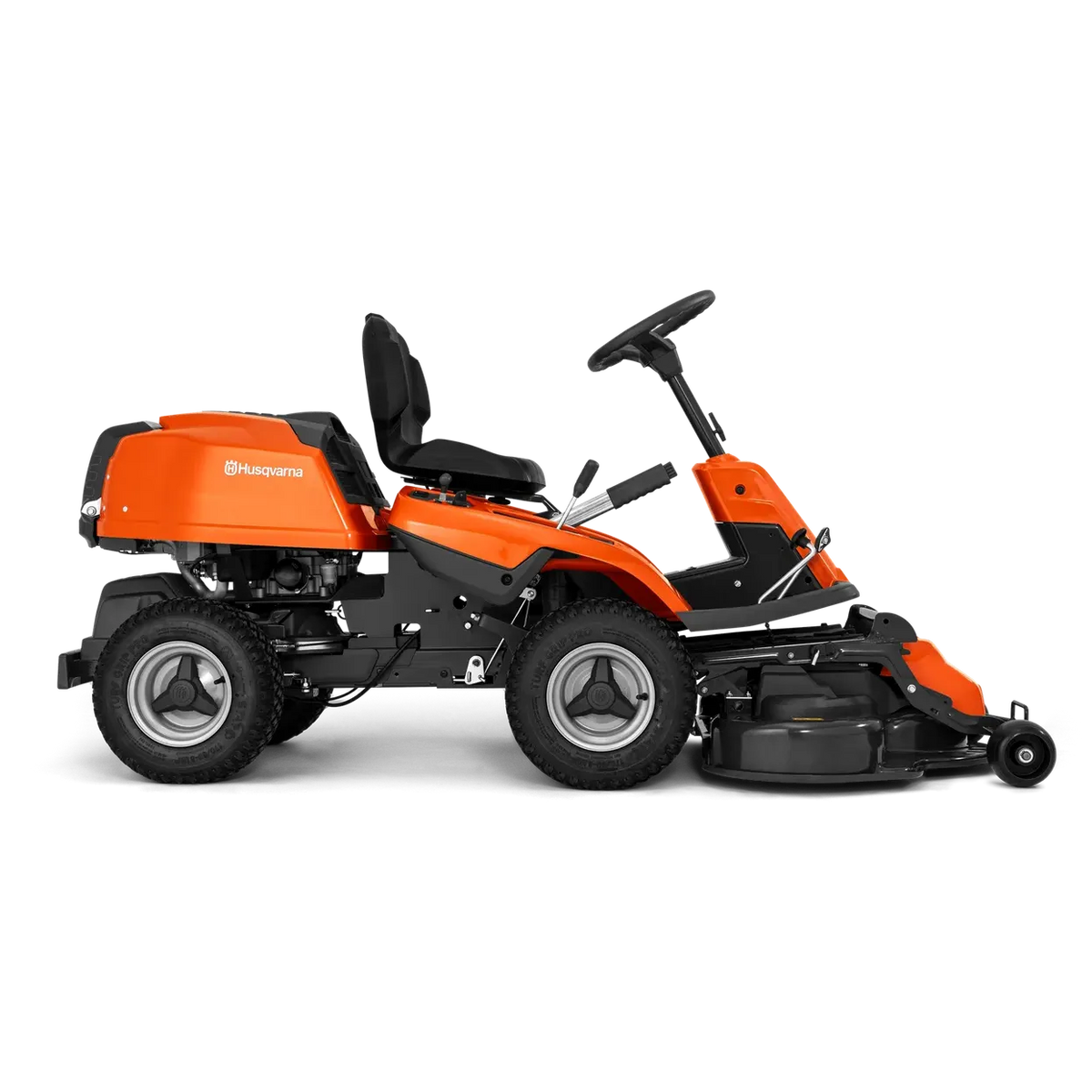

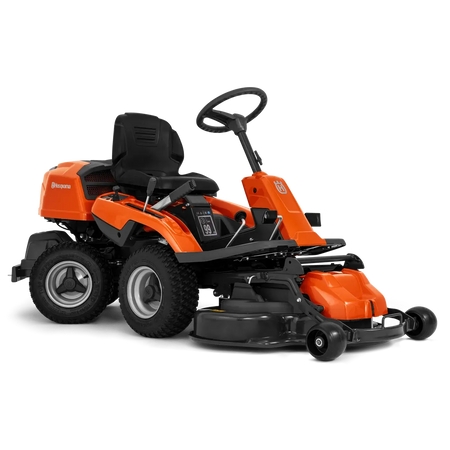

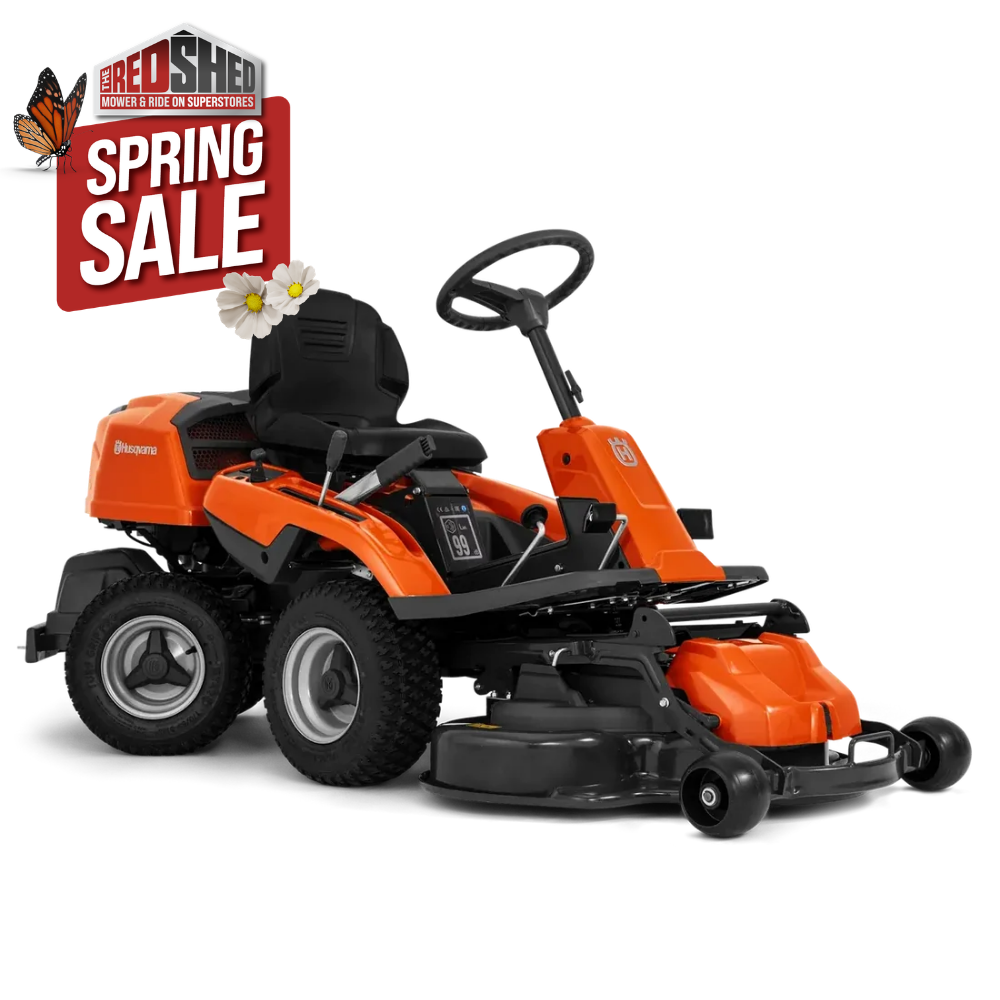

Husqvarna R 214TC Ride-On Front Mower - Versatile and easy-to-use rider.

Pivoting rear axle

The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.

Combi cutting deck

The Combi cutting deck allows you to choose between two cutting systems depending on the conditions. Choose BioClip® for lawn fertilisation and rear ejection for efficient mowing on areas with higher and rougher grass.

Comfortable driver's position

With a Rider you get safety, stability and traction on both flat grounds and hillsides. The Rider's low centre of gravity contributes to the exceptional traction as well as a comfortable 'sit-in' feeling for the user.

Hour meter

Helps you to have control over service and maintenance intervals.

Patented articulated steering

The articulated steering gives excellent maneuverability and facilitates driving around obstacles such as trees and bushes. Since the rear pair of wheels can swing underneath the machine, the turning radius becomes minimal at full lock.

16 inch wheels

16 inch wheels both front and back for optimal riding comfort and accessibility.

BioClip®

BioClip® (mulching) cuts the grass into fine pieces that quickly decompose and become a natural fertiliser, providing excellent results on frequently cut areas.

Automatic blade engagement

The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work.

Easy-access controls

Controls are easily accessible and designed for optimum user comfort.

Turn key start

Easy to get operating under any weather condition and no choking needed. Just turn the key and go.

Cutting decks and accessories

A wide range of cutting decks and accessories make our Riders exceptionally versatile.

Pedal-Operated Transmission

Pedal-operated hydrostatic transmission – speed and direction are managed by pedals, letting you keep both hands on the steering wheel for optimal driving control.

Front-mounted cutting deck

Front-mounted cutting deck for excellent accessibility into corners and under bushes, park benches etc.

Service position

The cutting deck can be tilted up into service position for easy access during cleaning or service.

Husqvarna Connect

With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play. Not yet available on all markets.

Easy-access cutting height lever

The cutting height lever is easy to reach from the driver’s seat, making it possible to do cutting height changes while mowing.

Engine behind driver

Thanks to the rear-mounted engine, you get a better overview of the mowing and less noise and emissions in the driver’s area.

Storage compartment

The open left storage makes it easy to access your items while mowing.

Bottle holder

Convenient bottle holder for refreshments.

R 214TC RIDER C94Art no: 970 54 23‑01

Engine

• Power/fuel type: Petrol
• Net power at preset rpm Energy: 112 kW
• Net power at preset rpm: 2,900 rpm
• Engine brand: Husqvarna
• Motor/engine manufacturer: Husqvarna
• Engine name: HV 586AE
• Cylinder displacement: 586 cm³
• Cylinders: 2
• Engine cooling: Air
• Engine lubrication type: Pressure with Oilfilter
• Oil filter: Yes

Emission

• Exhaust emissions (CO₂ EU V): 2778 g/kWh

Battery

• Battery capacity: 24 Ah
• Battery chemistry: Lead-Acid
• Battery Weight: 7.2 kg
• Battery brand: Global

Cutting deck

• Uncut circle: 30 cm
• Cutting width, min: 94 cm
• Cutting width, max: 94 cm
• Cutting height min: 25 mm
• Cutting height max: 75 mm
• Blade engagement: Automatic

Dimensions

• Tyre dimensions, front: 170/60-8
• Tyre dimensions, rear: 170/60-8
• Wheelbase: 88.7 cm
• Ground clearance: 105 mm
• Base machine, length: 223 cm
• Base machine, width: 100 cm
• Base machine, height: 107 cm
• Gross weight towed: 3110 kg
• Weight (excl. cutting equipment): 207 kg

Drive system

• PTO (Power Take Off): Belt-driven
• Transmission type: Hydrostatic
• Drive method: Dual pedal-operation
• Speed forward max: 9 km/h
• Speed reverse max: 6 km/h

Equipment

• Seat suspension: Yes
• Seat type: Comfort
• Hour meter type: Digital
• Seat material: PU
• Seat back height: High
• Foldable seat: Yes
• Steering wheel type: Ergonomic
• Parking brake, type: Disc

Vibration

• Vibration level steering wheel: 1.9 m/s²
• Vibration level seat: 0.29 m/s²

Sound and noise

Sound pressure level at operators ear: 83 dB(A)

Sound power level, guaranteed (LWA): 98 dB(A)

Sound power level, measured: 97 dB(A)
