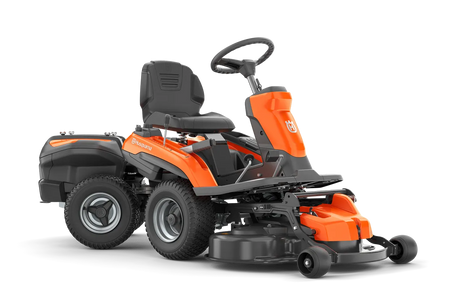

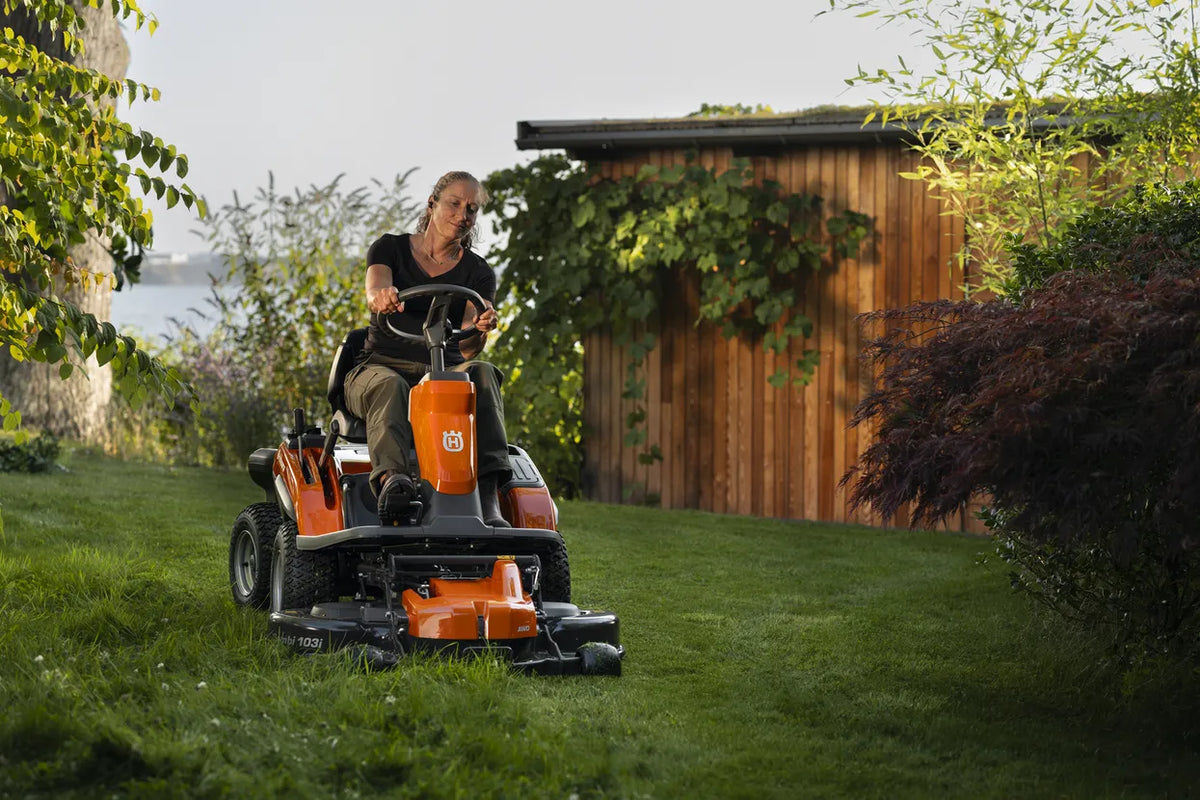

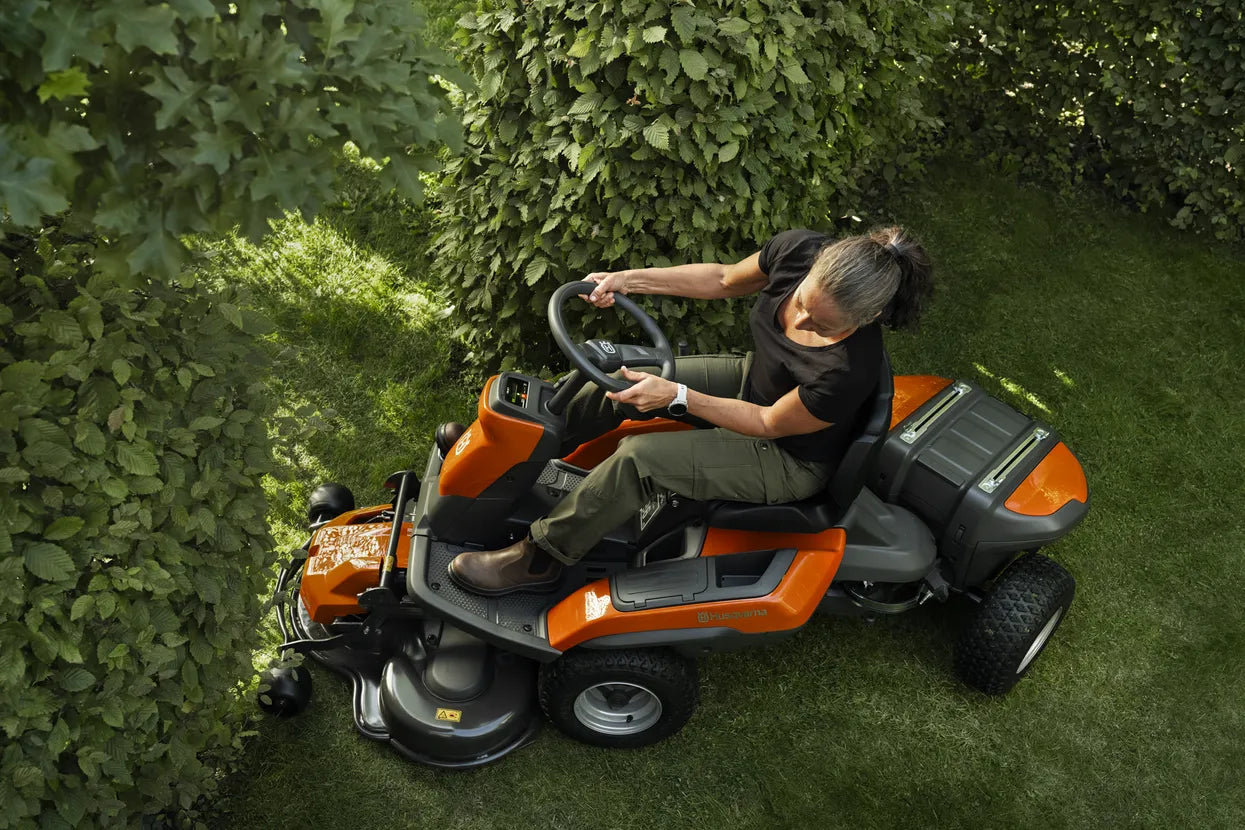

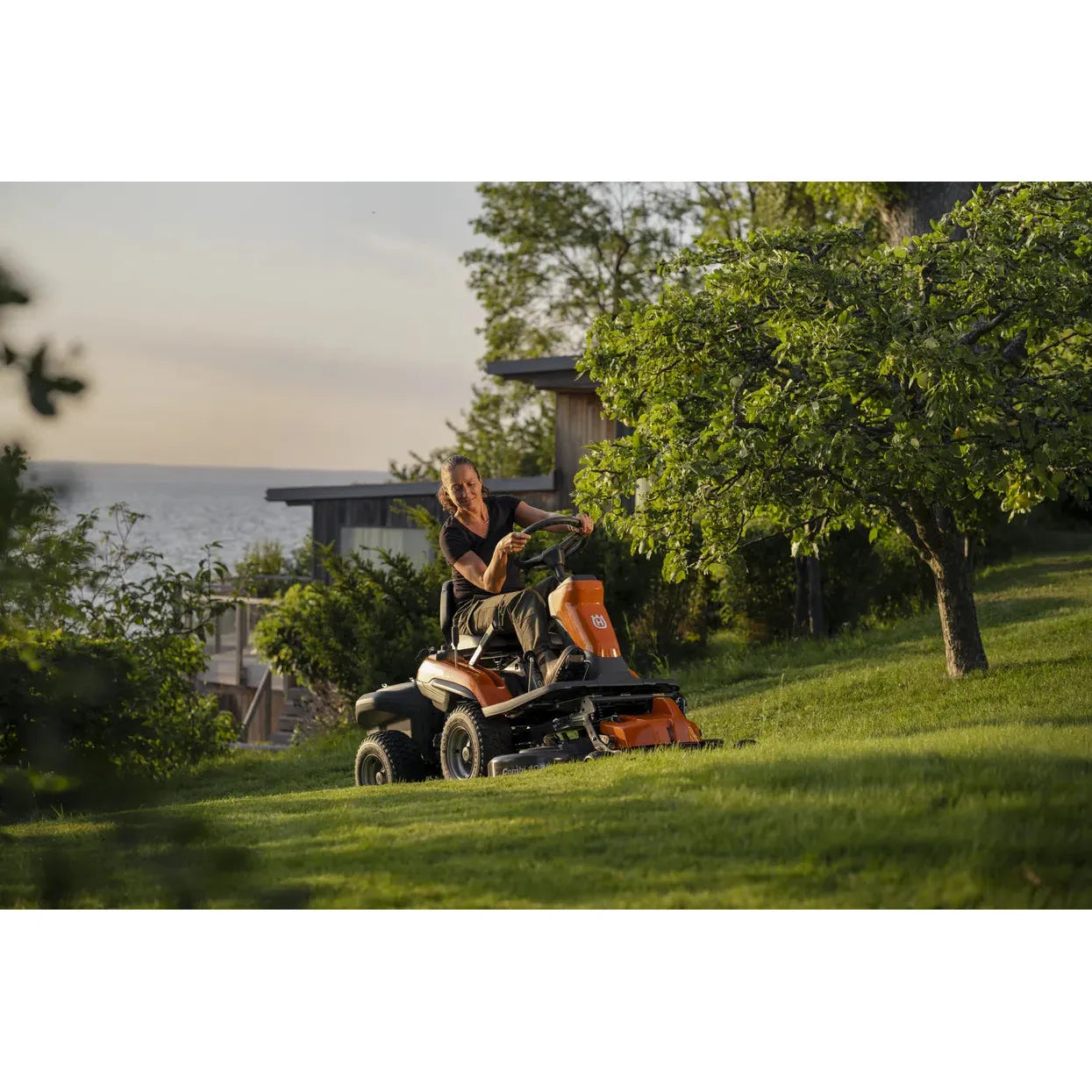

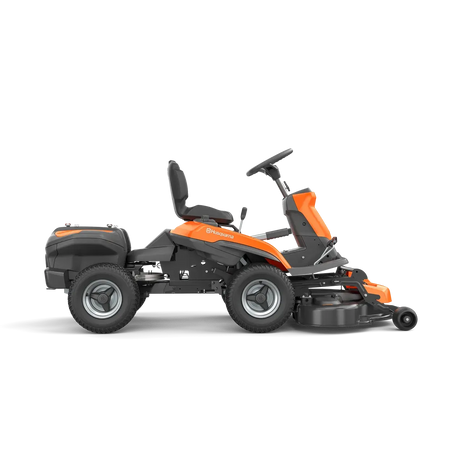

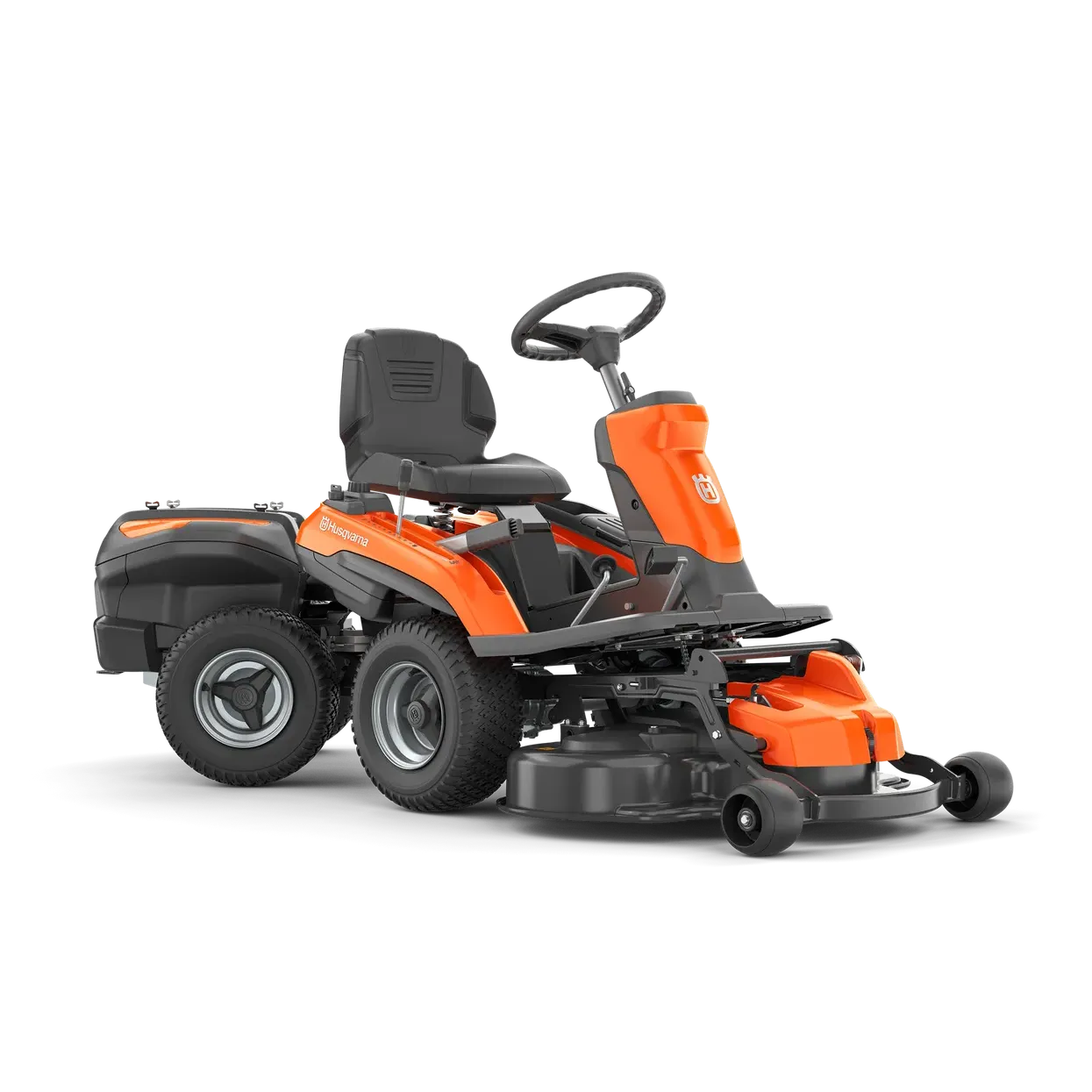

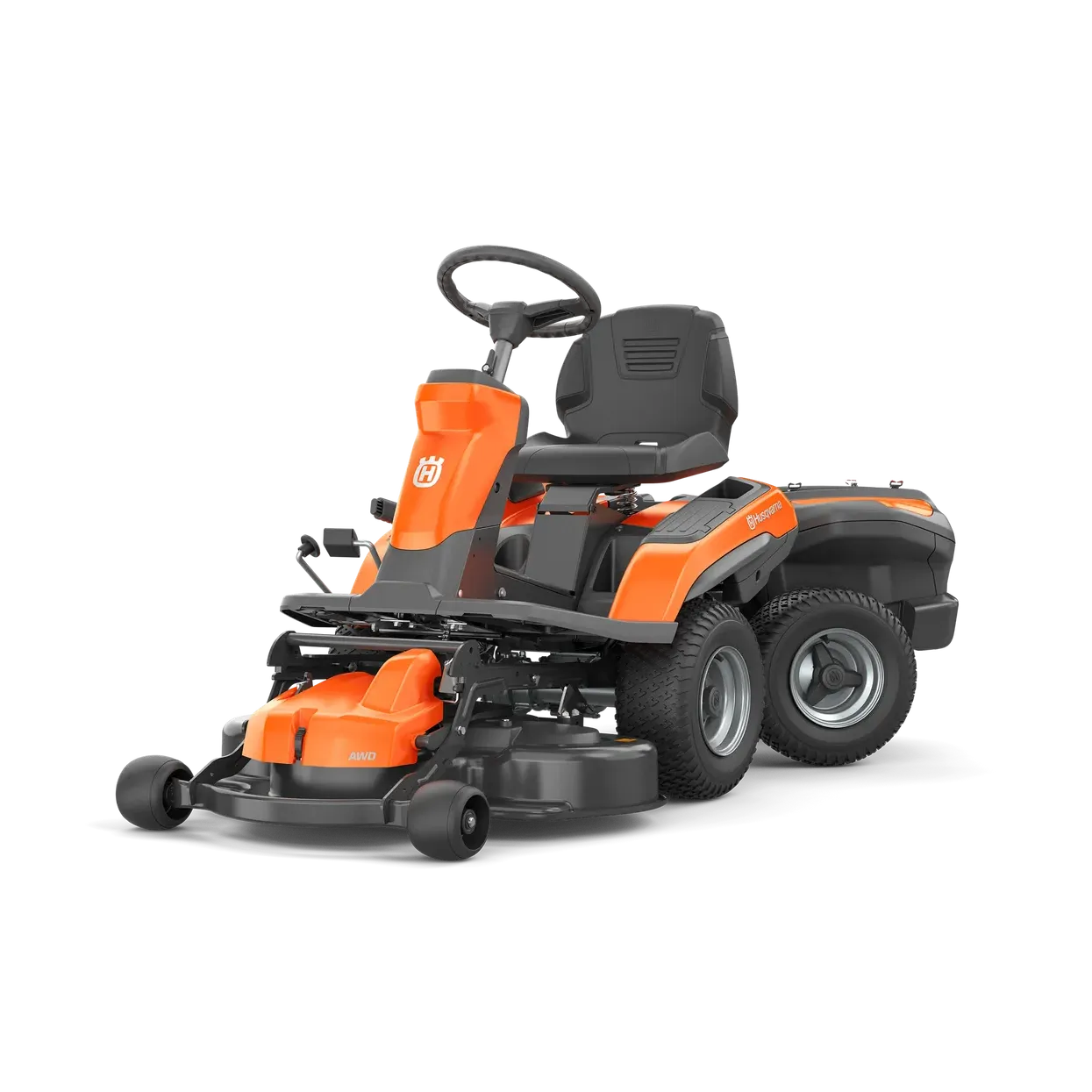

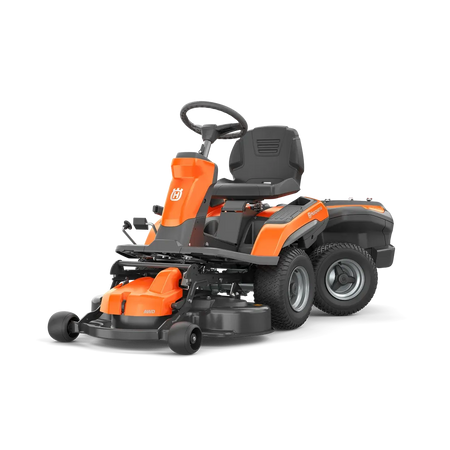

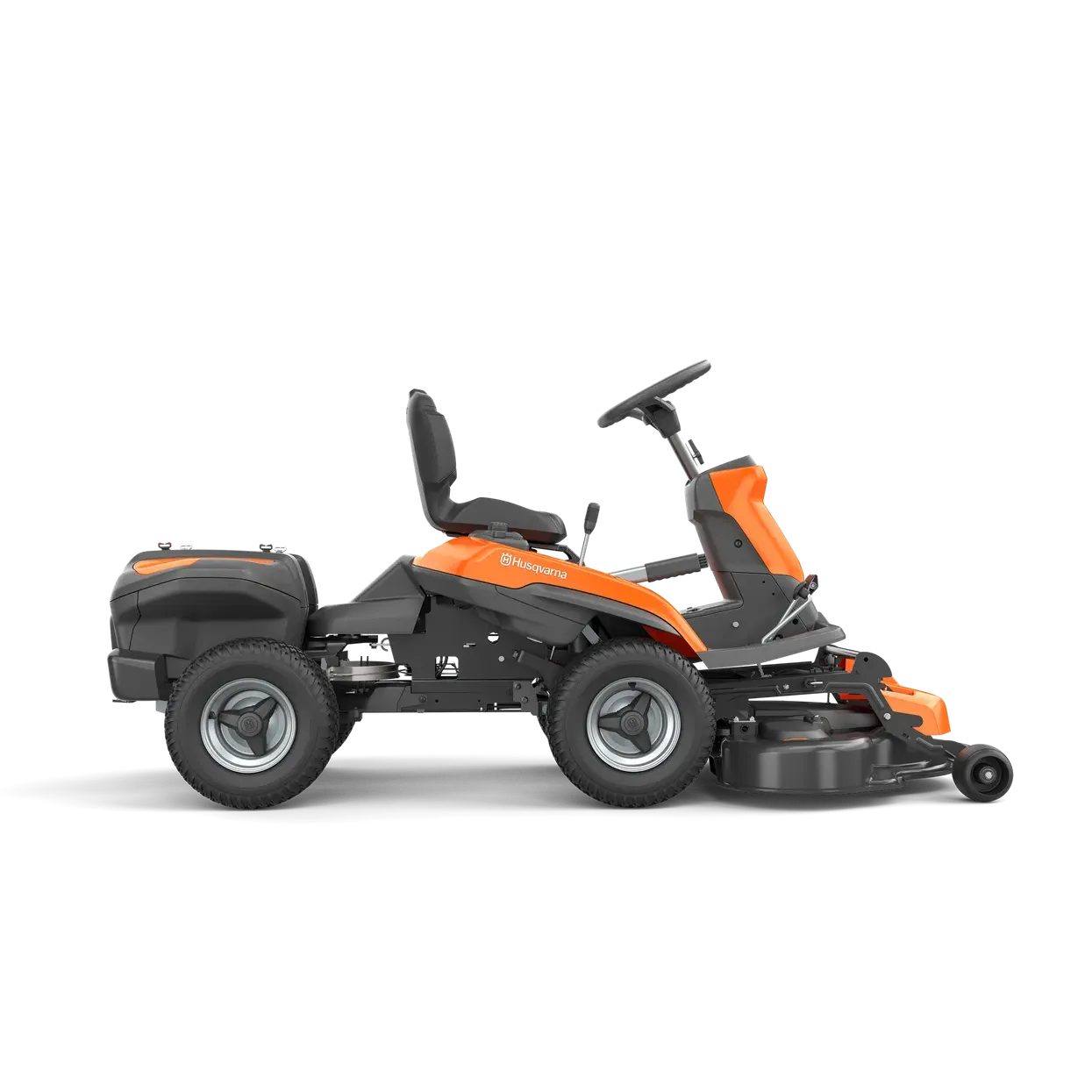

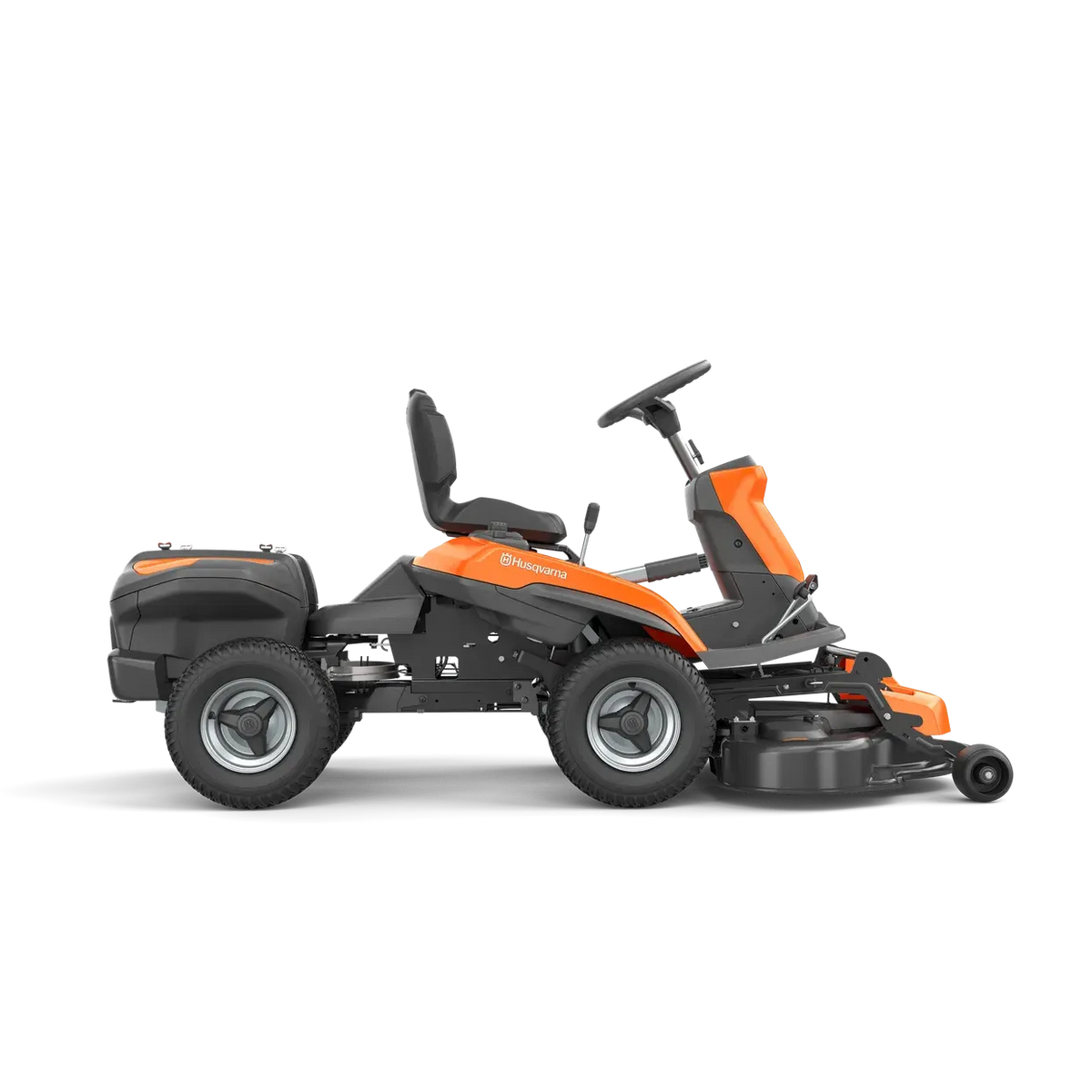

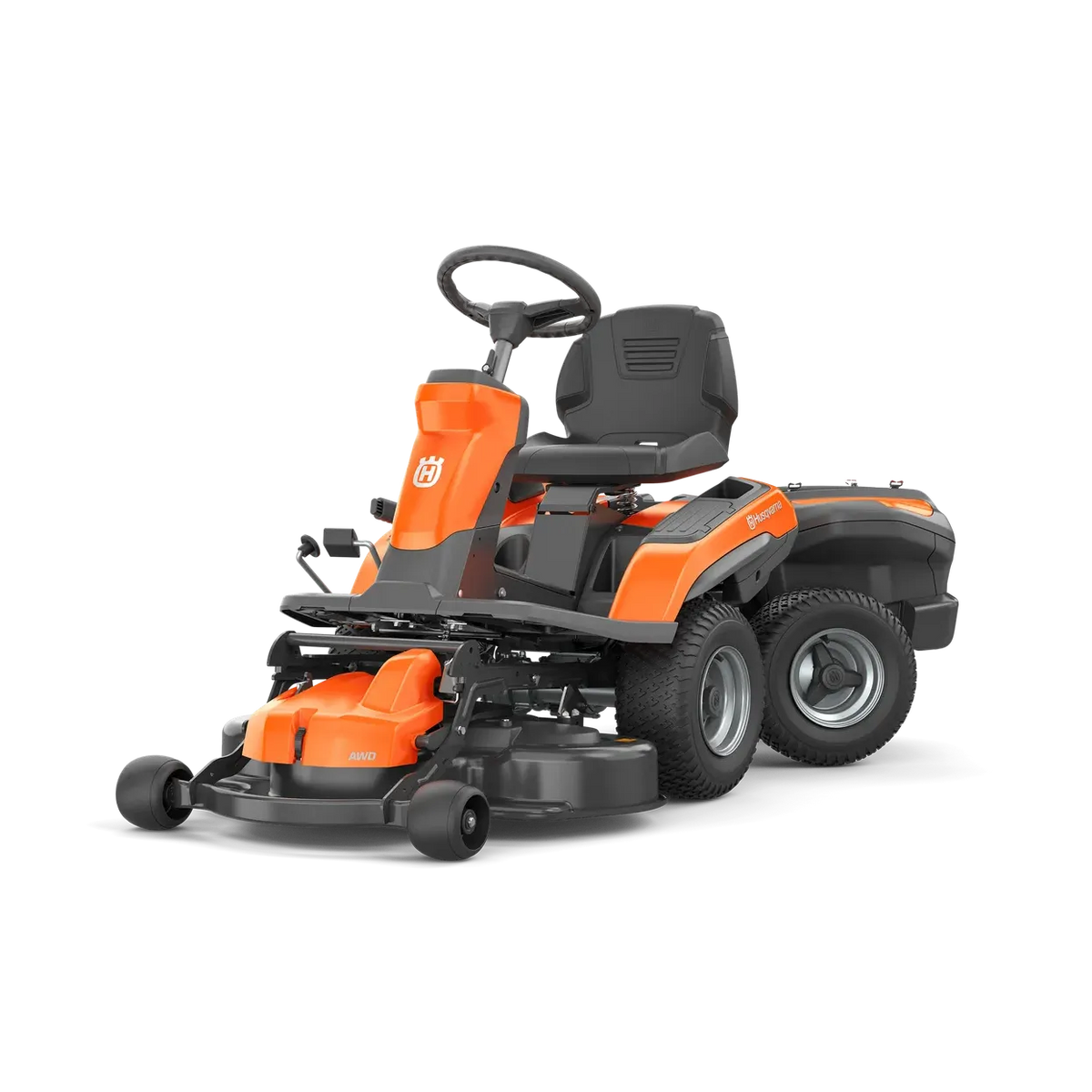

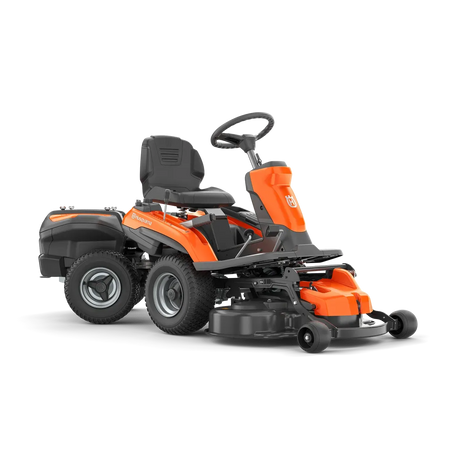

Husqvarna R200iX Battery Rider AWD - All-wheel drive Rider with winter capacity

All-Wheel-Drive (AWD)

All-Wheel-Drive (AWD) ensures traction on uneven, wet and slippery areas and slopes. AWD automatically adjusts the traction on all wheels depending on the situation and ground condition.

Winter Capabilities

Designed for efficient winter operation with reliable traction on snow and several winter attachments available. *It is recommended to store the Rider in an environment above 0 degrees to ensure that charging can occur. If The Battery's temperature is below 0 degrees Celsius, it will not charge. This also applies to long work breaks to avoid the battery temperature dropping, which affects performance and functionality.

Dynamic mowing

The power supplied to the blades is automatically adapted based on the cutting conditions to maximise results and run time. In addition, each cutting motor is adapted individually, for example, when only one part of the cutting deck moves over thick grass.

100 % battery powered

The fully electric, belt-free drive system reduces maintenance.

Low maintenance

The battery power riders requires less maintenance compared to petrol machines. No fuel, no oil and no belt service.

Low noise

Battery-power means a more silent operation for improved user comfort and less noise impact on neighbours.

Electric cutting deck

Electric motors individually control each blade for improved runtime and performance.

Charging status indicator

LED lights indicate charging status for better control and planning of work.

Automatic parking break

Automatic parking brake for increased safety with less effort.

Service position

The cutting deck can be tilted up into service position for easy access during cleaning or service.

HMI Display

The intuitive display provides real-time data and guides through visual symbols and warning sounds to facilitate the driver's work.

Intuitive control panel

All controls, including the cutting height adjustment and jog-wheel, are ergonomically located and easy to reach from the operator's seat. The blades are engaged automatically when the cutting deck is lowered for a quick and smooth start of work.

Articulated steering

Articulated steering gives excellent maneuverability and facilitates driving around obstacles.

Dual battery option

Possibility to add an extra battery to extend the runtime

Easy access controls

Intuitive user interface with easily operated jog-wheel to interact with your machine.

Front-mounted cutting deck

Front-mounted cutting deck for excellent reach into corners and under bushes.

BioClip®

BioClip® (mulching) cuts the grass into fine pieces that quickly decompose and become a natural fertiliser, providing excellent results on frequently cut areas.

Pivoting rear axle

The rear axle is pivoting to get maximum traction on the drive wheels and a smooth ride also on uneven surfaces.

Bottle holder

Convenient bottle holder for refreshments.

Four large wheels

14-inch wheels both front and back provide optimal riding comfort, great accessibility and less risk of damaging delicate surfaces.

Automatic blade engagement

The blades are engaged automatically when you lower the cutting deck for a quick and smooth start of work.

Power-Conserving savE™ Mode

SavE™ mode maximises the run time, reduces noise levels and preserves product battery life by lowering the rpm. Ideal for tasks that do not require full power. Just press the button to turn savE™ mode on and off.

Husqvarna Connect

With the smart Husqvarna Connect app, you’ll have easy access to helpful tips, manuals and spare part recommendations. For your connected Bluetooth equipment, the app also provides additional information such as runtime and charging status as well as maintenance and service needs. The app can be downloaded, free of charge, from App Store or Google Play. Not yet available on all markets.

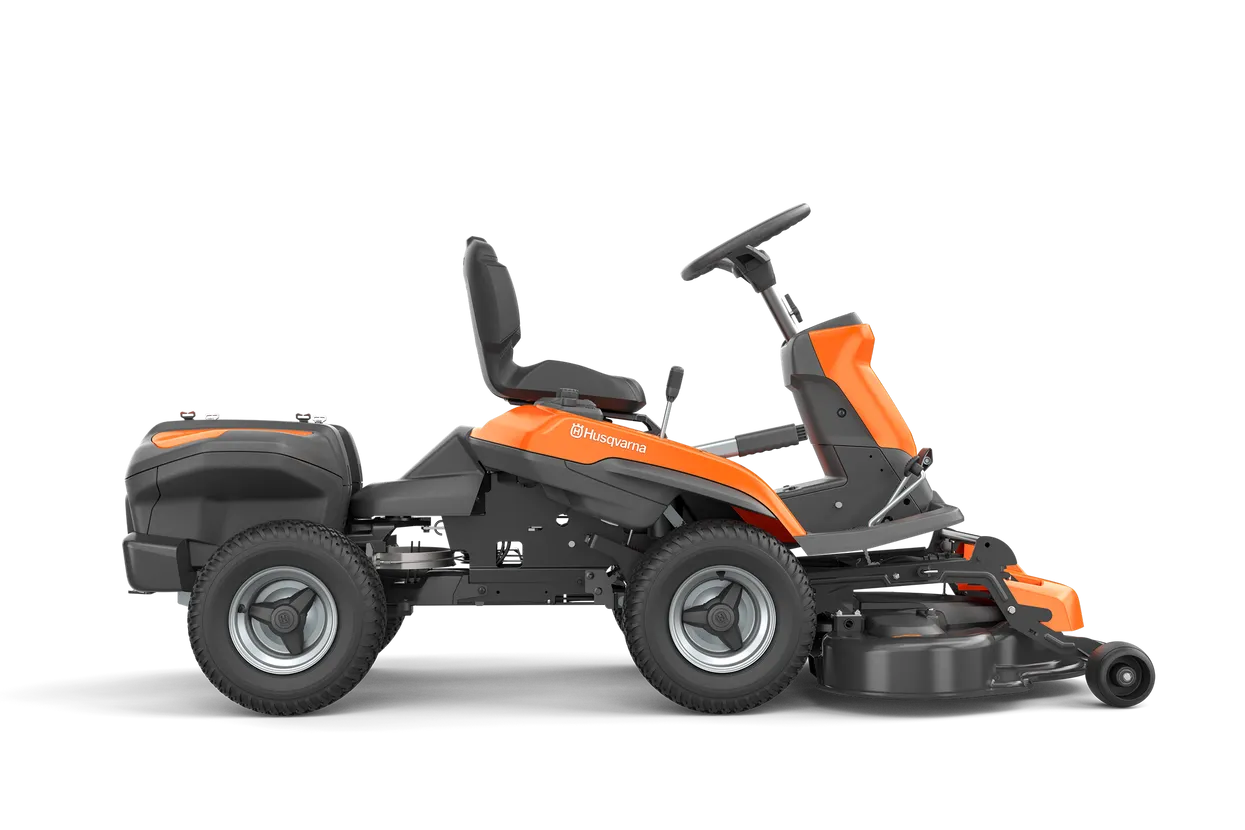

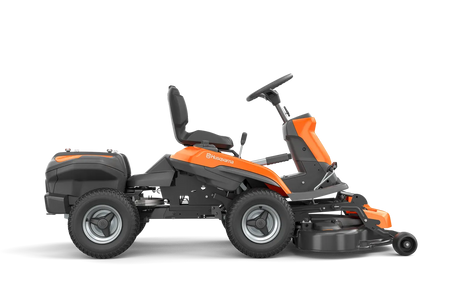

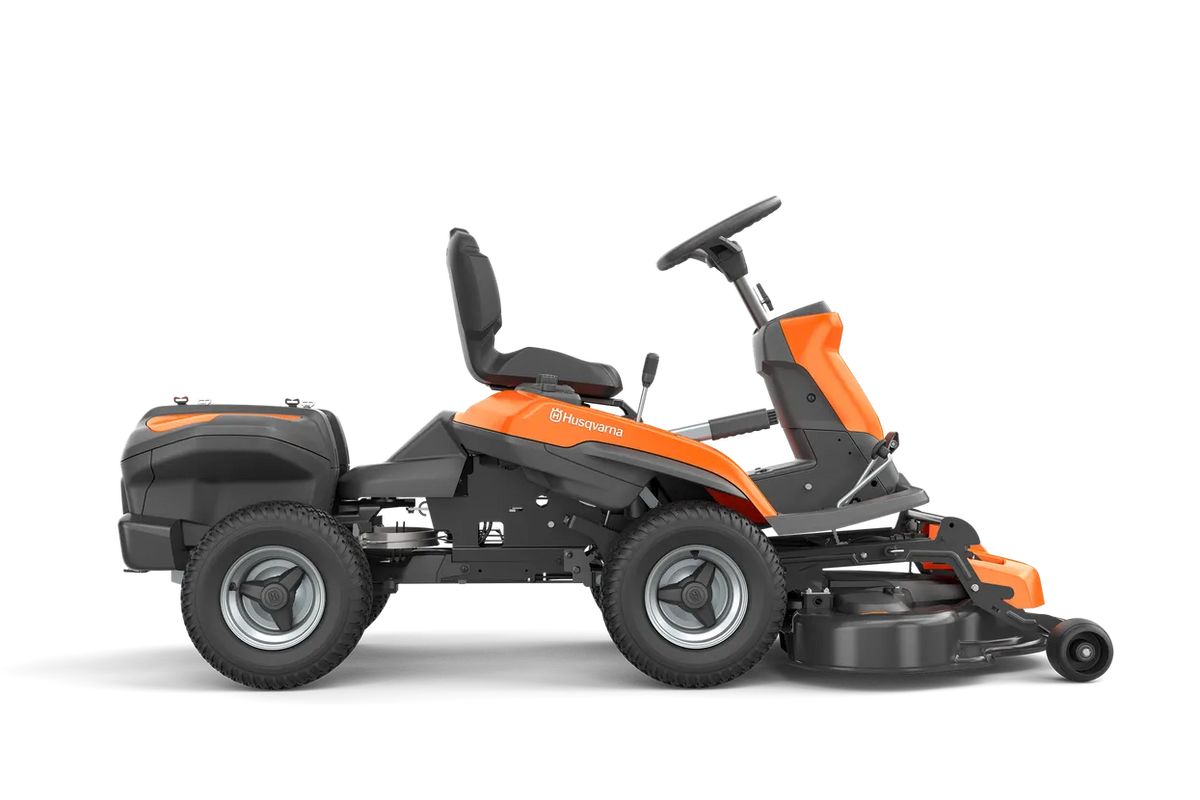

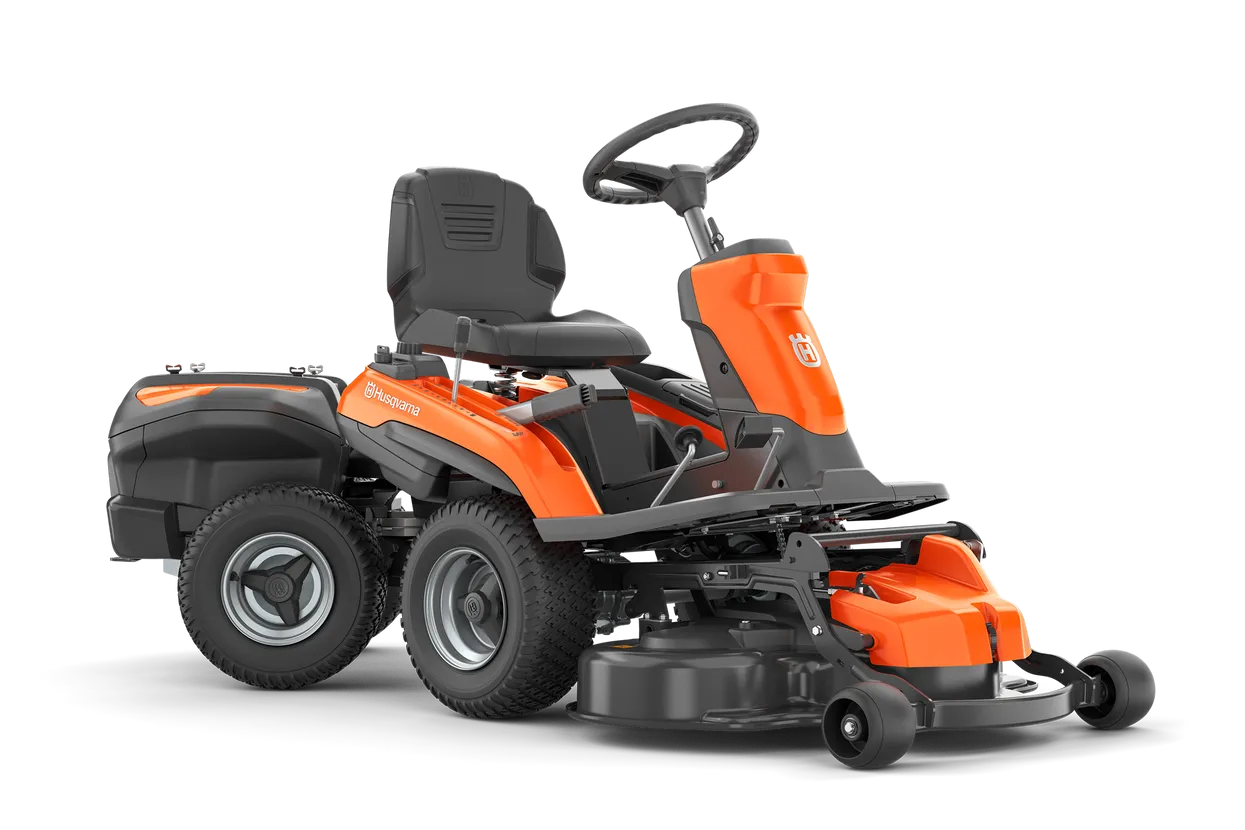

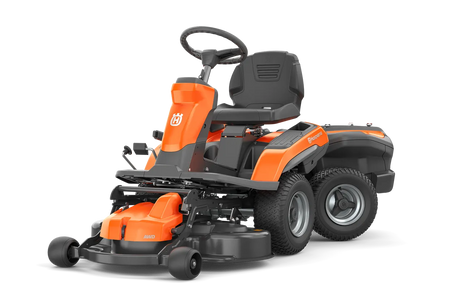

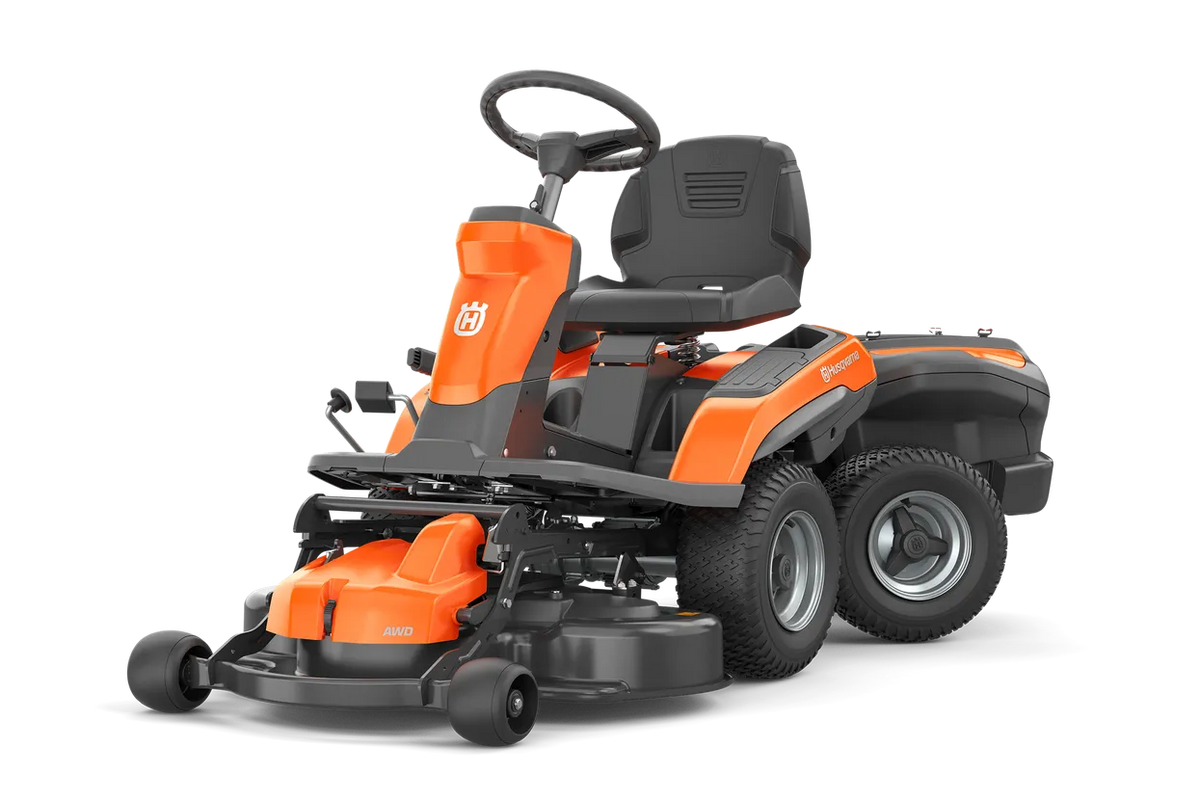

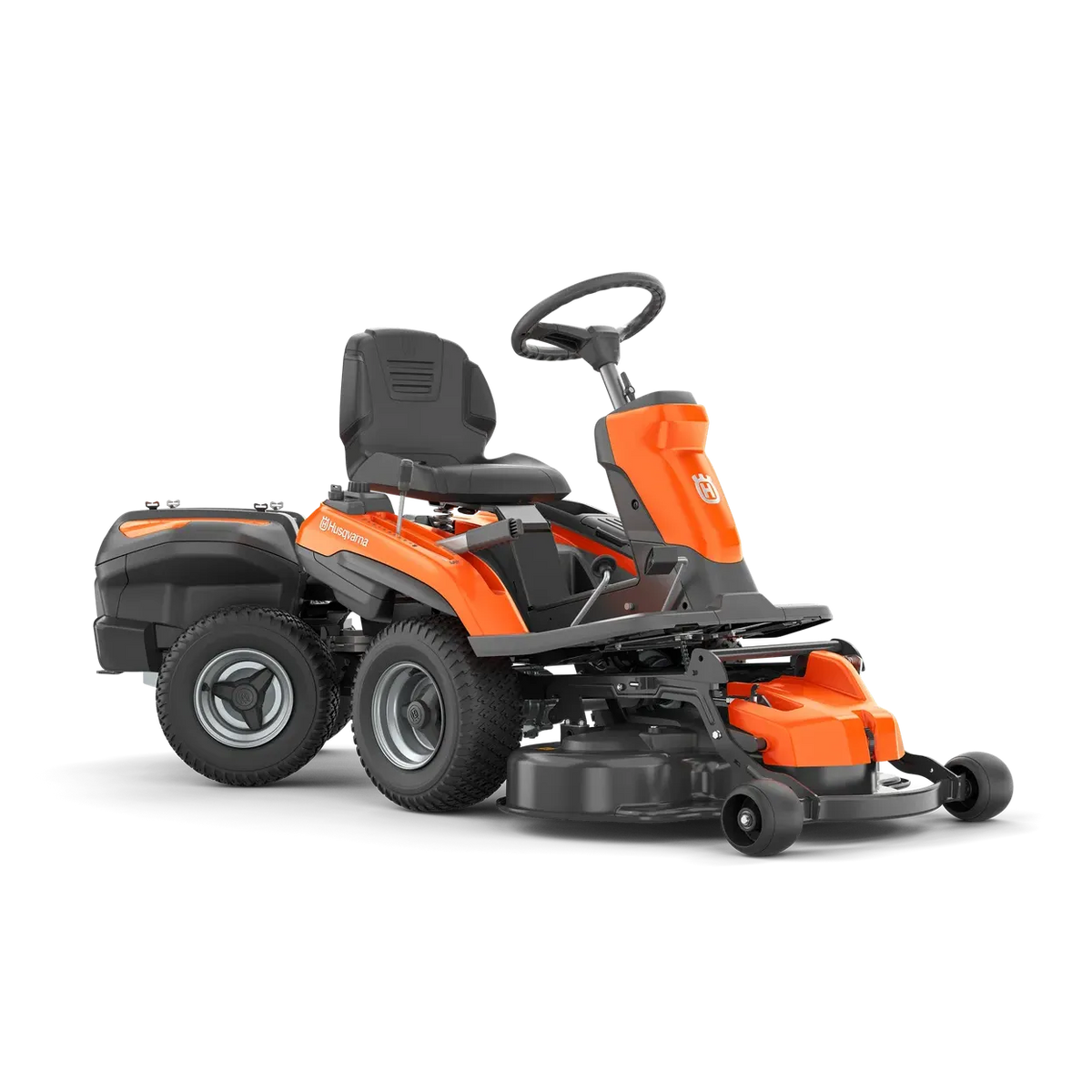

R 200iX AWD RIDER

Art no: 970 74 80‑01

Engine

• Power/fuel type: Battery

Battery

• Battery capacity: 38.5 Ah
• Battery type: Li-Ion
• Battery manufacturer: Husqvarna

Cutting deck

• Uncut circle: 40 cm
• Cutting width, min: 94 cm
• Cutting width, max: 103 cm
• Cutting height min: 25 mm
• Cutting height max: 75 mm
• Blade engagement: Electric

Dimensions

• Tyre dimensions, front: 170/60-8
• Tyre dimensions, rear: 170/60-8
• Wheelbase: 90.7 cm
• Base machine, length: 199 cm
• Base machine, width: 89 cm
• Base machine, height: 113 cm
• Gross weight towed: 1110 kg
• Weight (excl. cutting equipment): 203 kg

Drive system

• Transmission type: Electric AWD
• Drive method: Dual pedal-operation
• Speed forward max: 9.5 km/h
• Speed reverse max: 5 km/h

Equipment

• Seat suspension: Yes
• Seat type: Comfort
• Hour meter type: Digital with pre-programmed service intervals
• Seat material: PU
• Seat back height: Medium
• Foldable seat: Yes
• Steering wheel type: Ergonomic
• Parking brake, type: Electric

Vibration

• Vibration level steering wheel: 0.19 m/s²
• Vibration level seat: 0.34 m/s²

Sound and noise

• Sound pressure level at operators ear: 78 dB(A)
• Sound power level, guaranteed (LWA): 97 dB(A)
• Sound power level, measured: 94 dB(A)
