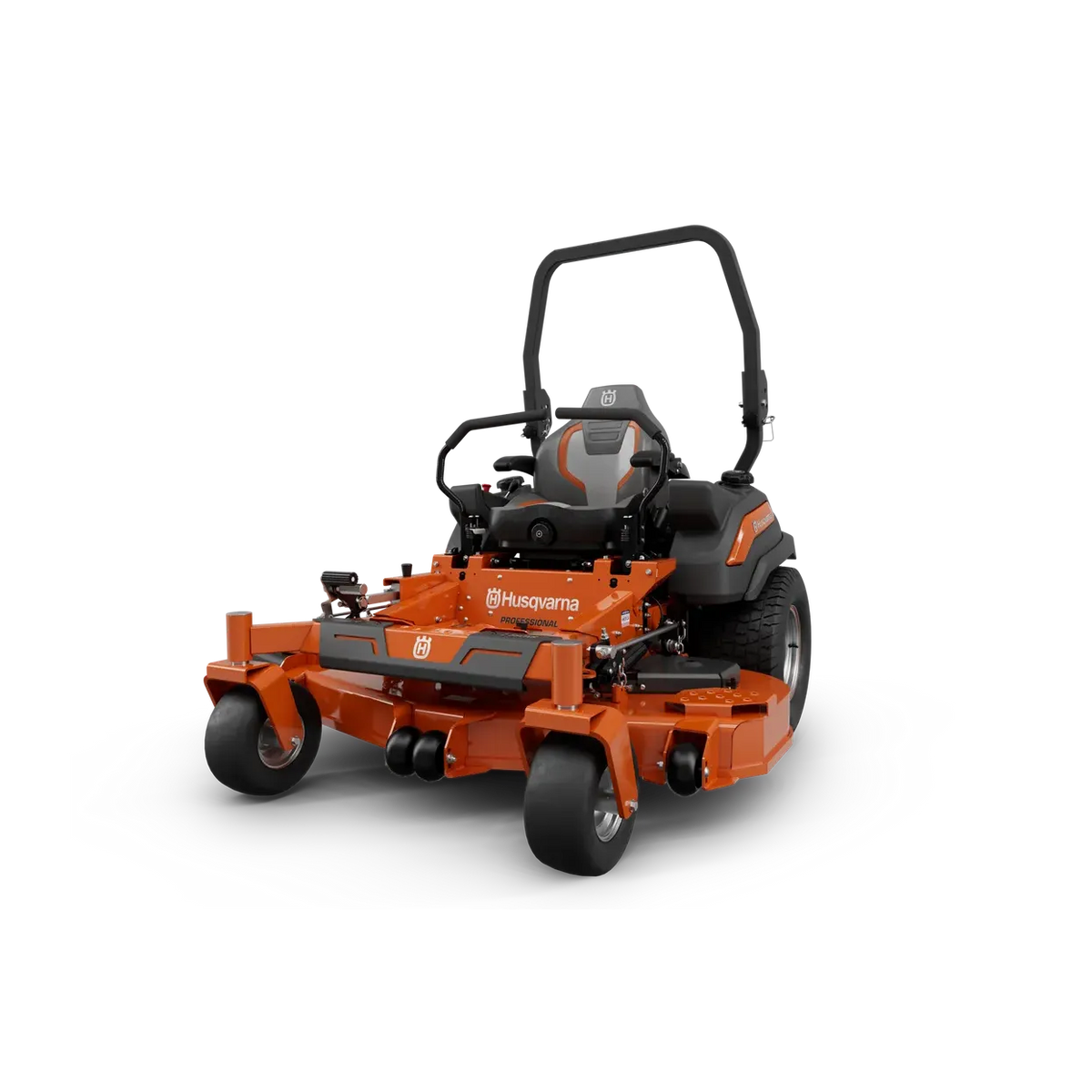

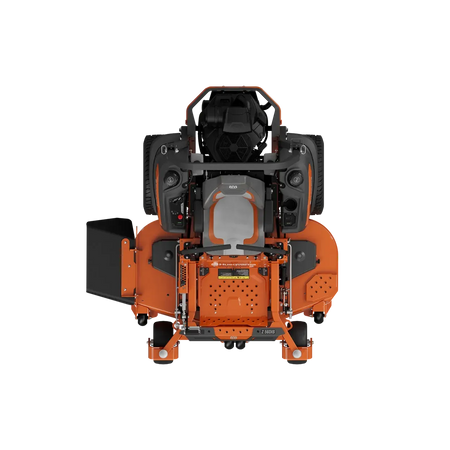

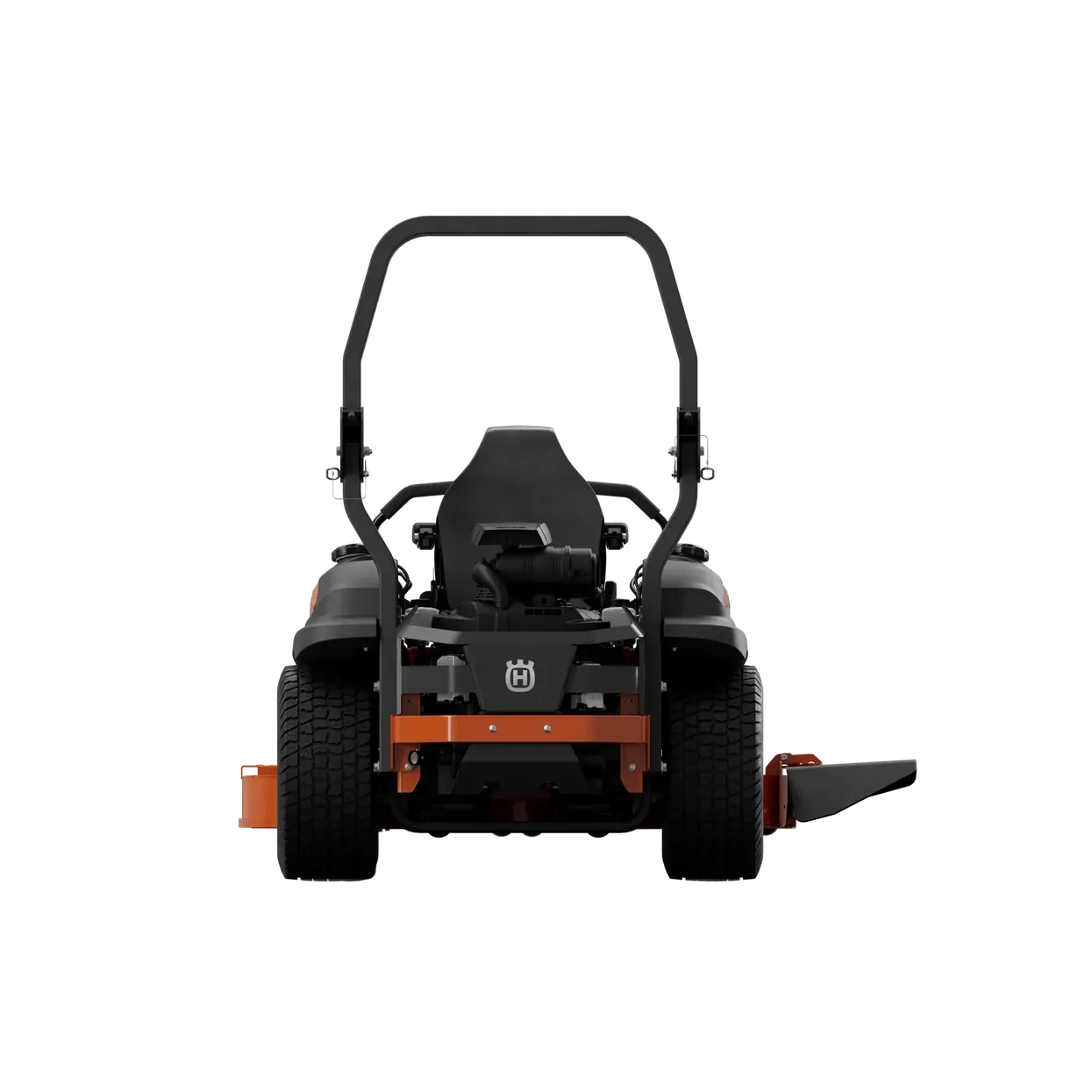

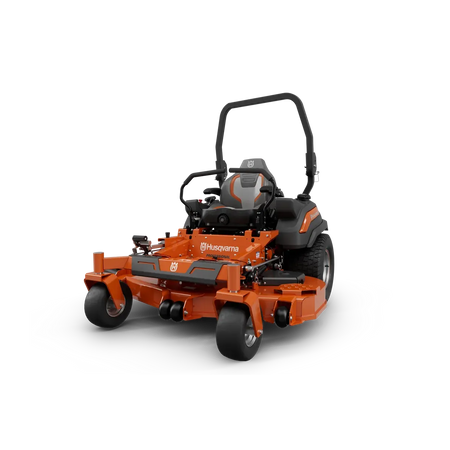

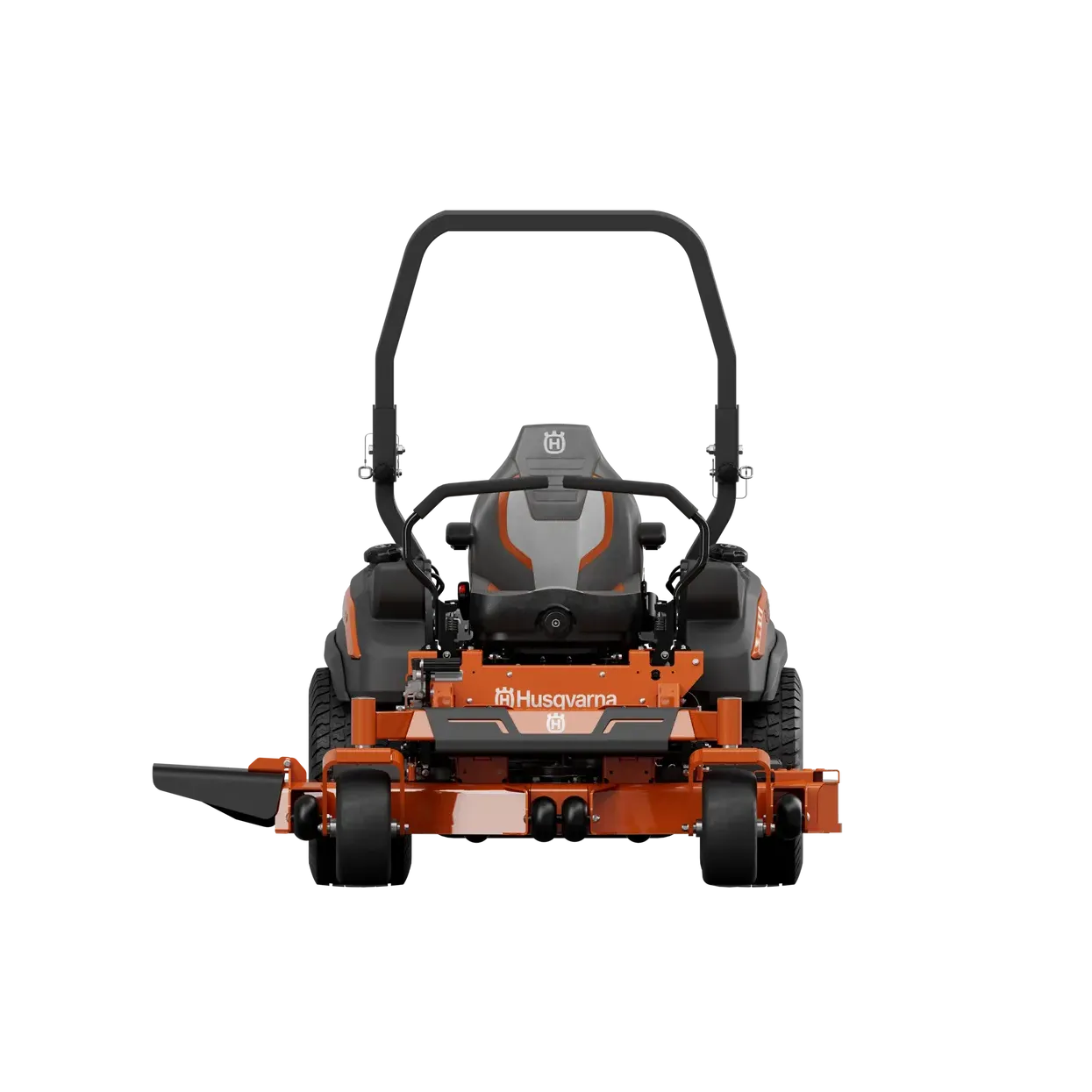

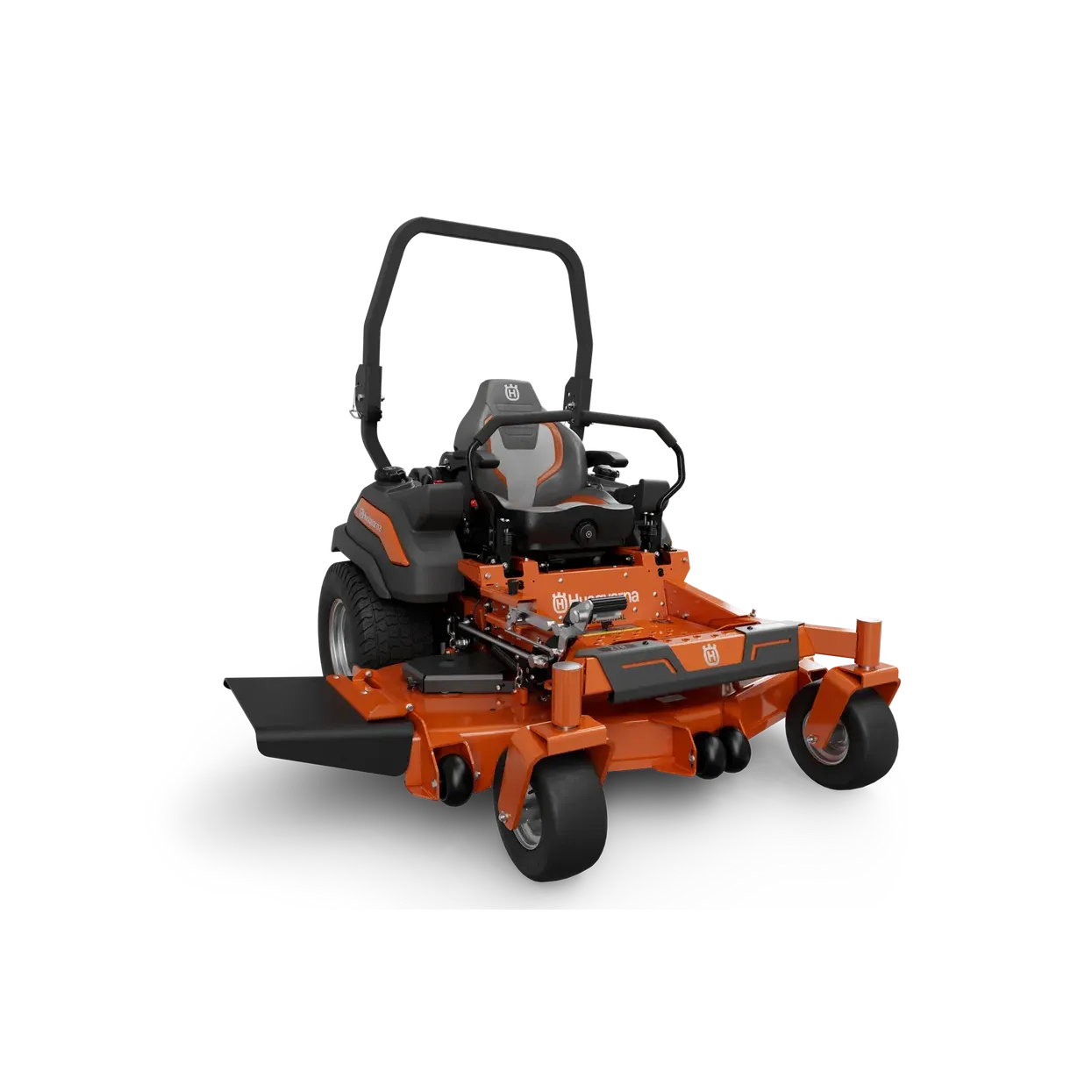

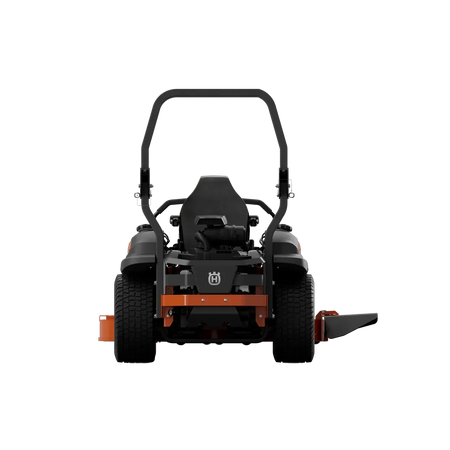

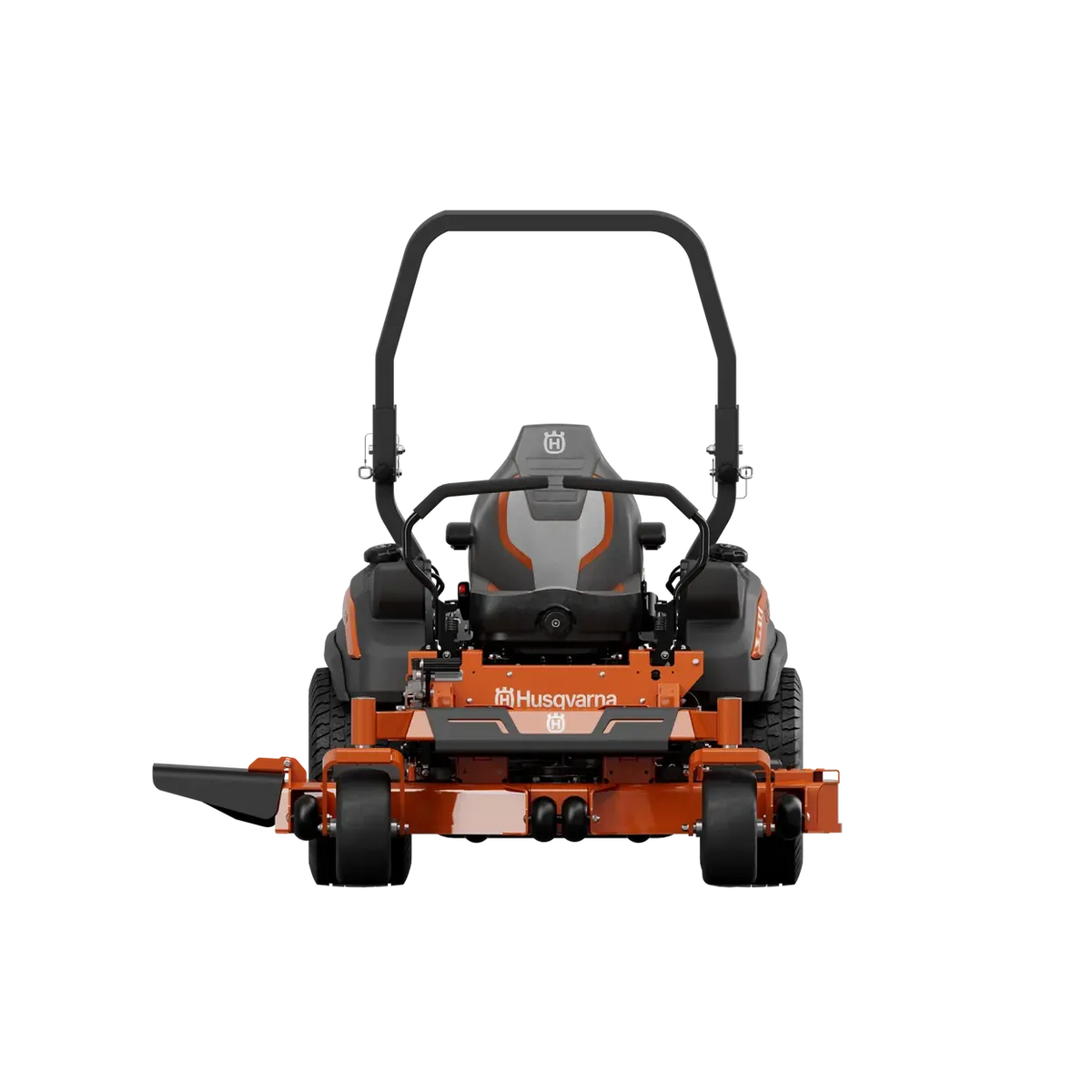

Husqvarna Z560XS Zero Turn Mower - Latest design focused on productivity, durability and cut quality.

AGM Battery

A smaller and more robust battery adopted from the transportation industry provides better reliability, improved longevity and more service space.

Heavy duty rubber discharge chute

The discharge chute is built of heavy-duty rubber to withstand wear and tear while protecting nearby property.

Roll Over Protection System (ROPS)

The easily foldable ROPS protects the user and can be lowered in areas without the proper clearance.

Kawasaki Fuel Injected Engine

The Kawasaki FX1000 EFI engine combines big displacement with an integrated electronic throttle control, to give stable torque delivery even in heavy cutting. The result is higher productivity without sacrificing cut quality.

Ergonomic controls

Comfortable, user-focused controls put everything needed to operate the mower within easy reach.

LED fuel gauge

The automotive style LED fuel gauge lets you know exactly how much fuel is remaining and warns you when you are too low.

Cast iron spindles

10" diameter cast iron spindles, supported by heavy duty tapered roller bearings give maximum durability and impact resistance.

Automatic parking brake

The patent pending parking brake system automatically activates or deactivates as the steering levers are moved outward or inward. (Z560X with optional dust boots shown)

Deck height adjustment

The deck lift system is spring assisted and allows convenient hand free operation. A simple locking pin adjusts cut height.

HydroGear ZT5400 Transmissions

The largest and most capable commercial transmission in the line-up that will handle the biggest jobs in landscaping.

Large fuel capacity

Twelve gallons of fuel capacity for all-day cutting capability.

Premium suspension seat

Heavily bolstered cushions combined with a dial by weight full suspension, provide all day comfort for the operator. Added elastomeric vibration control (EVC) reduces fatigue.

7 gauge fabricated cutting deck

A deep draw deck, heavy duty cutting blades and an efficient flow design allow for rapid cut speeds with a high quality finish.

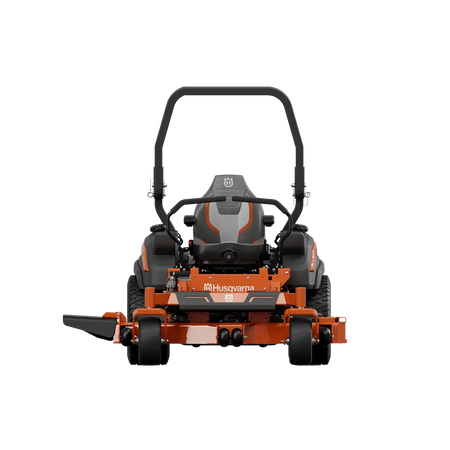

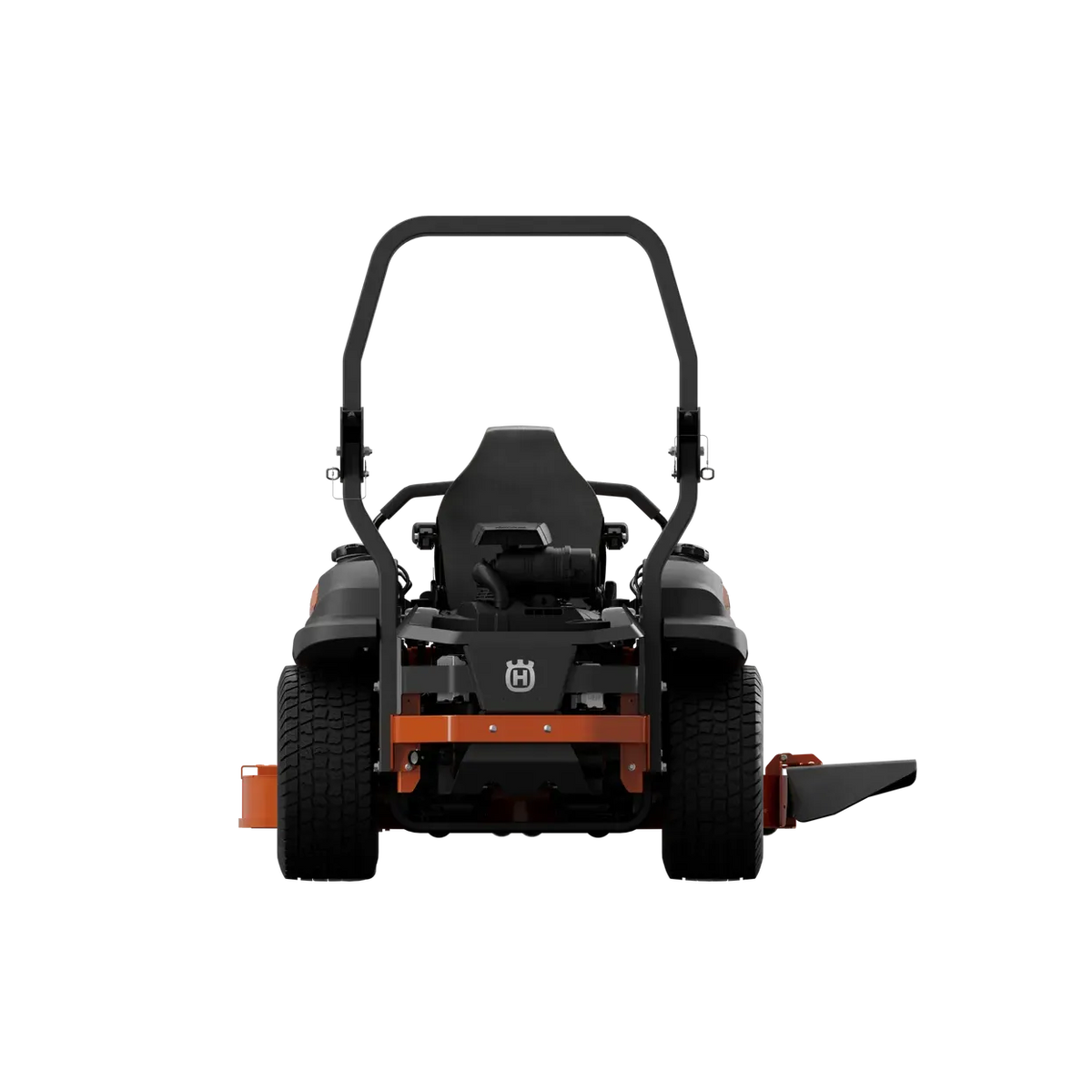

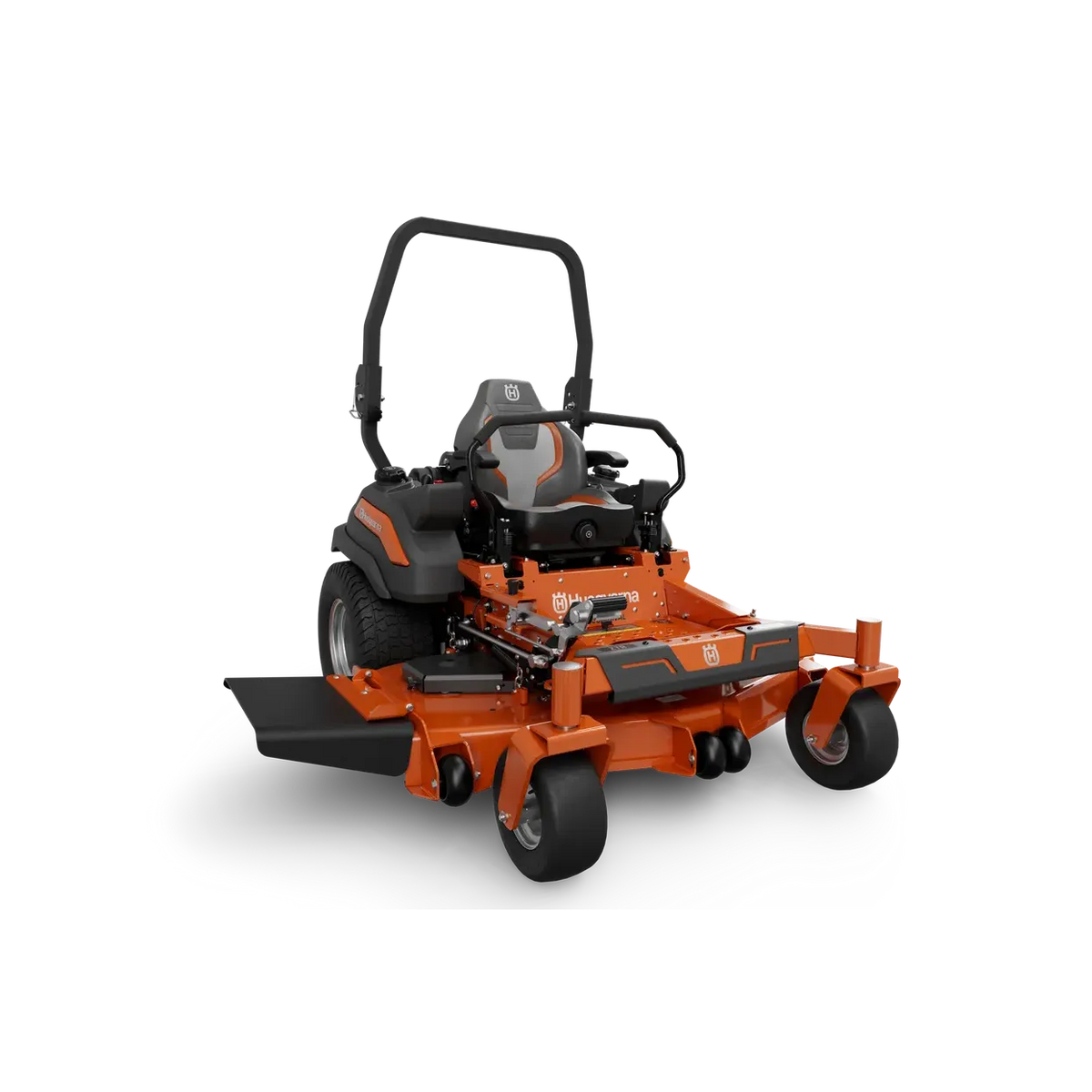

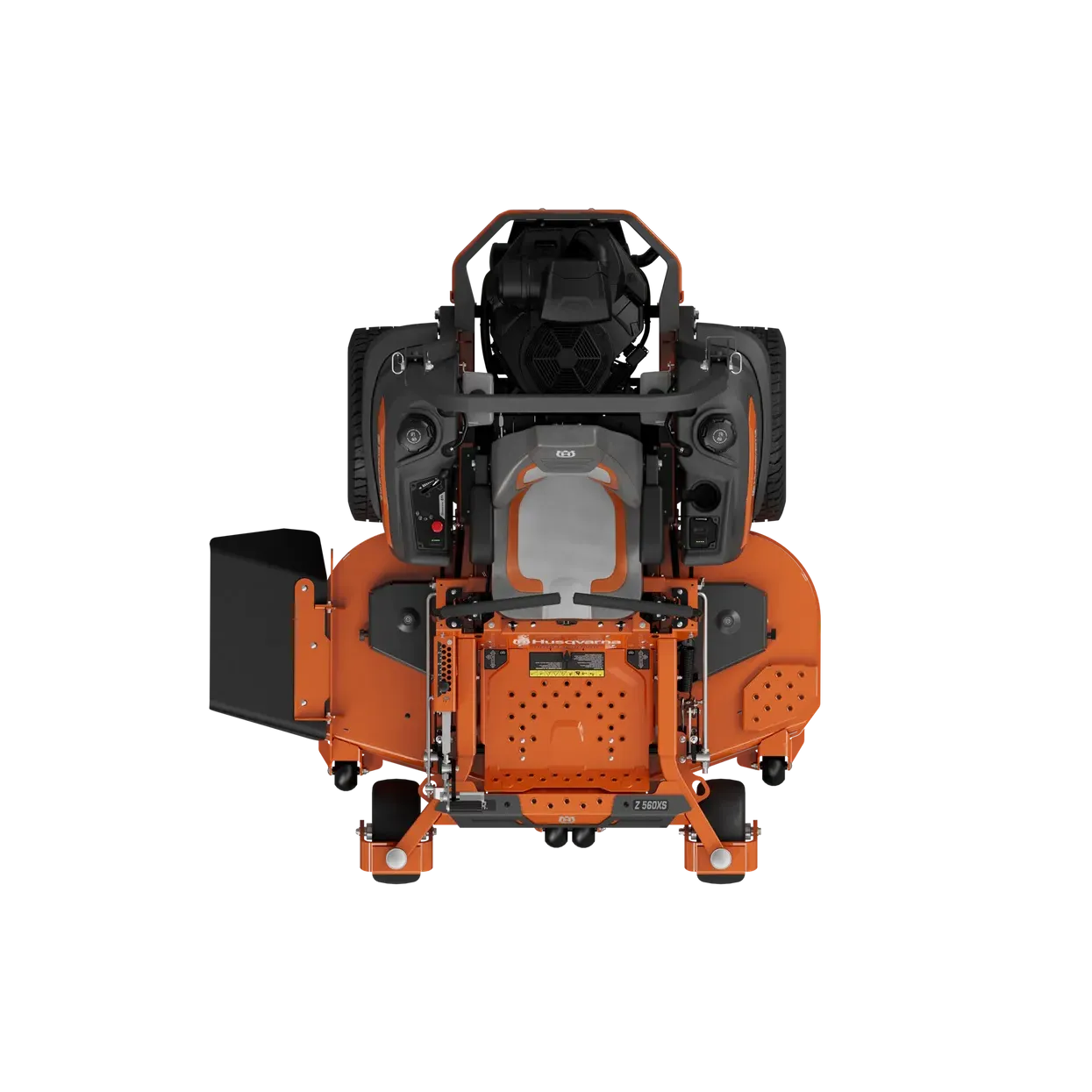

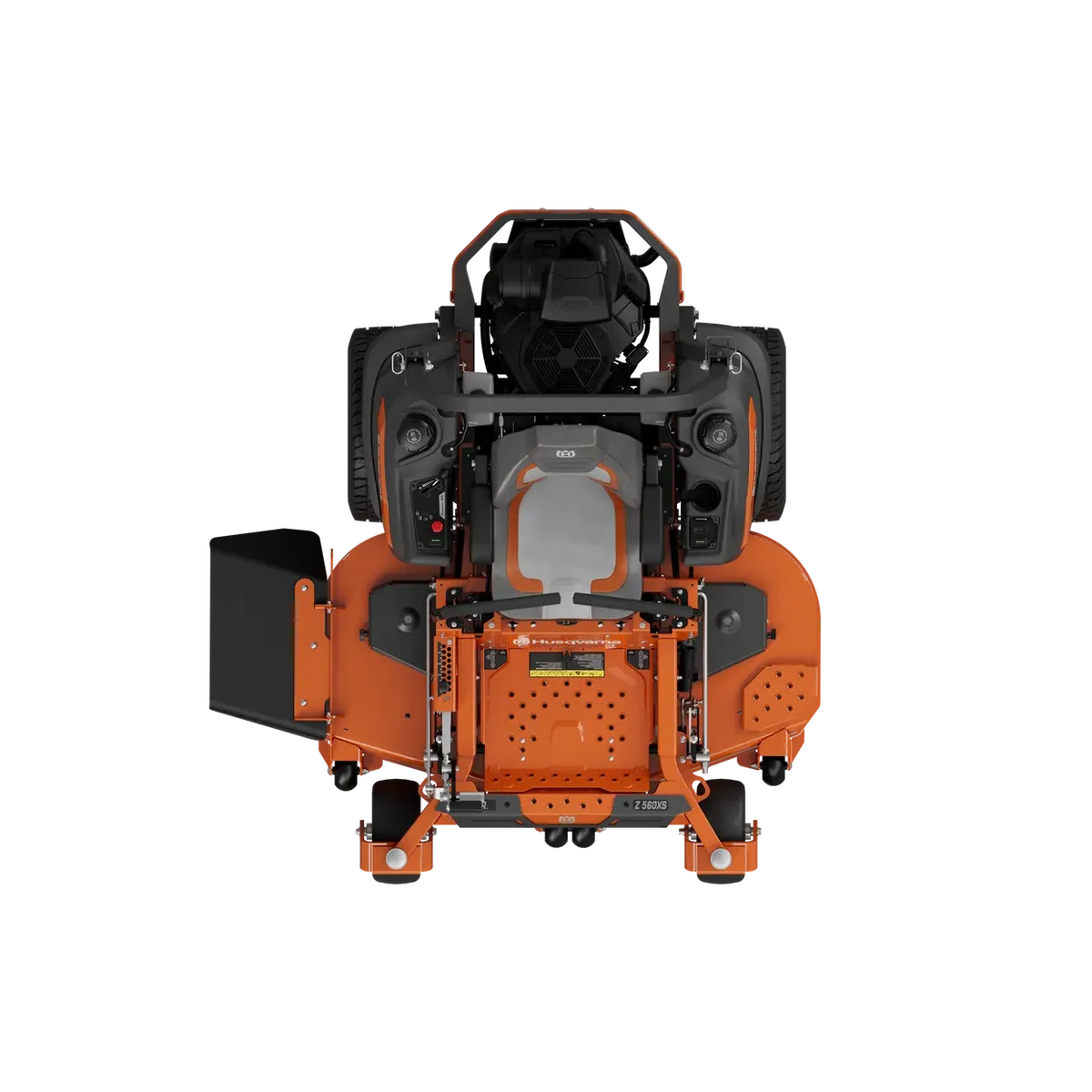

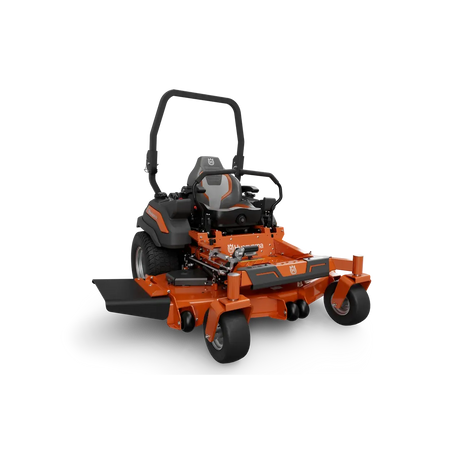

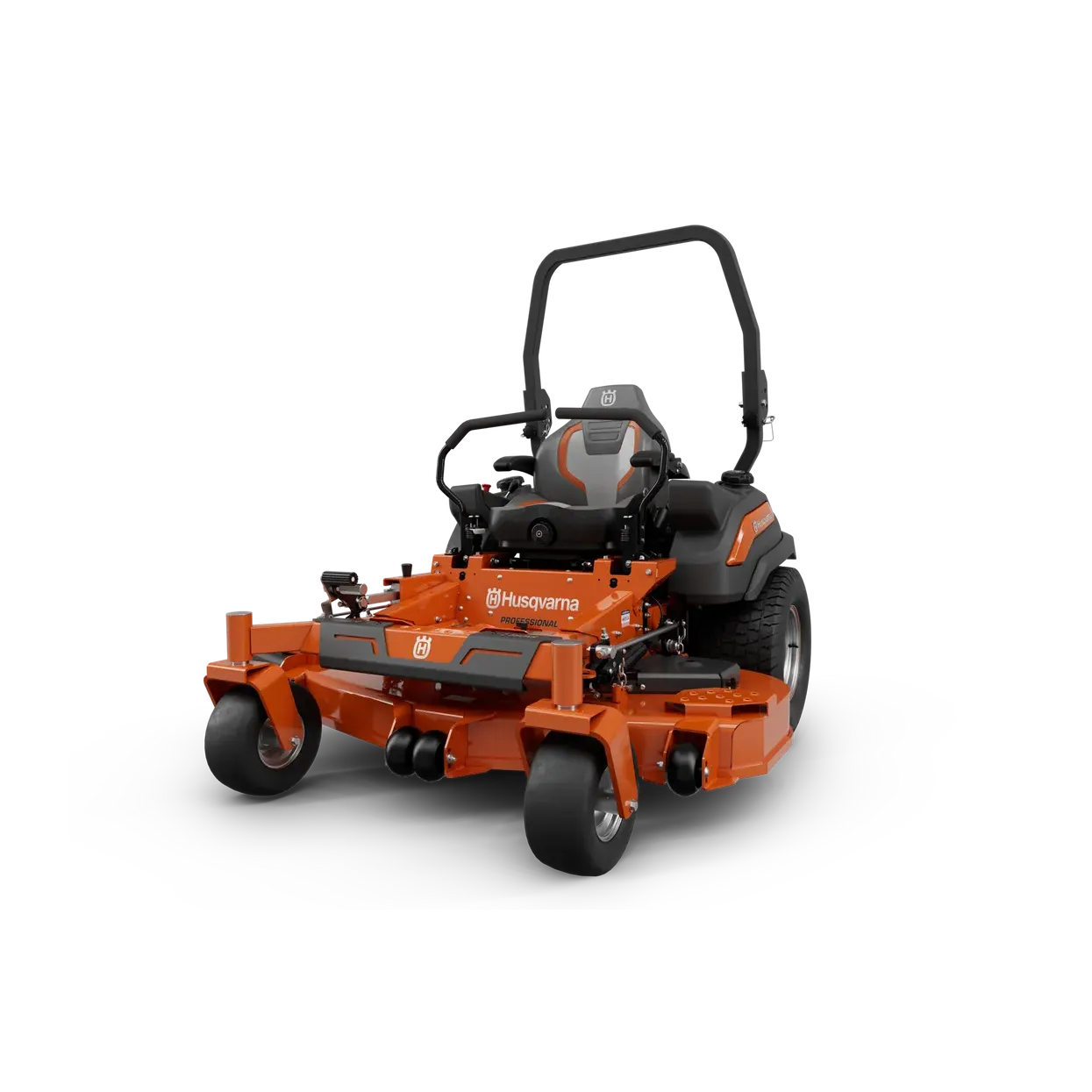

Z560XS Professional Zero Turn Mower

Art no: 970 71 98‑02

Capacity

• Cutting width: 152.4 cm
• Speed forward min: 0 km/h
• Speed forward max: 19.3 km/h

Emission

• Exhaust emissions (CO₂ EU V): 1809 g/kWh

Cutting deck

• Cutting Methods (filter): Side discharge
• Cutting deck type: 7-gauge fabricated
• Cutting height min: 25.4 mm
• Cutting height max: 127 mm

Dimensions

• Weight (complete product w/o side packed articles): 594 kg

Engine

• Engine name: FX Series V-Twin
• Engine brand: Kawasaki
• Cylinder displacement: 999 cm³
• Fuel tank volume: 45.4 l

Equipment

• Seat type: Premium, suspension

Control

Connectivity: Not applicable
